• Model NO.：HCB7008
• Rows Number：Single
• Load Direction：Radial Bearing
• Material：Ceramic
• Chamfer：1
• Si3n4 Weight：0.048
• Zro2 Weight：0.089
• Transport Package：Insutrial Packing or Single Box Packing
• Specification：40*68*15mm
• Trademark：RTB
• Origin：China
• HS Code：8482910000
• Production Capacity：100000 Pieces,Year
• Package size per unit product：68.00cm * 40.00cm * 15.00cm
• Gross weight per unit product：0.280kg

Basic Info.

Model NO. HCB7008 Rows Number Single Load Direction Radial Bearing Material Ceramic Chamfer 1 Si3n4 Weight 0.048 Zro2 Weight 0.089 Transport Package Insutrial Packing or Single Box Packing Specification 40*68*15mm Trademark RTB Origin China HS Code 8482910000 Production Capacity 100000 Pieces/Year

Packaging & Delivery

Package size per unit product 68.00cm * 40.00cm * 15.00cm Gross weight per unit product 0.280kg

Product Description

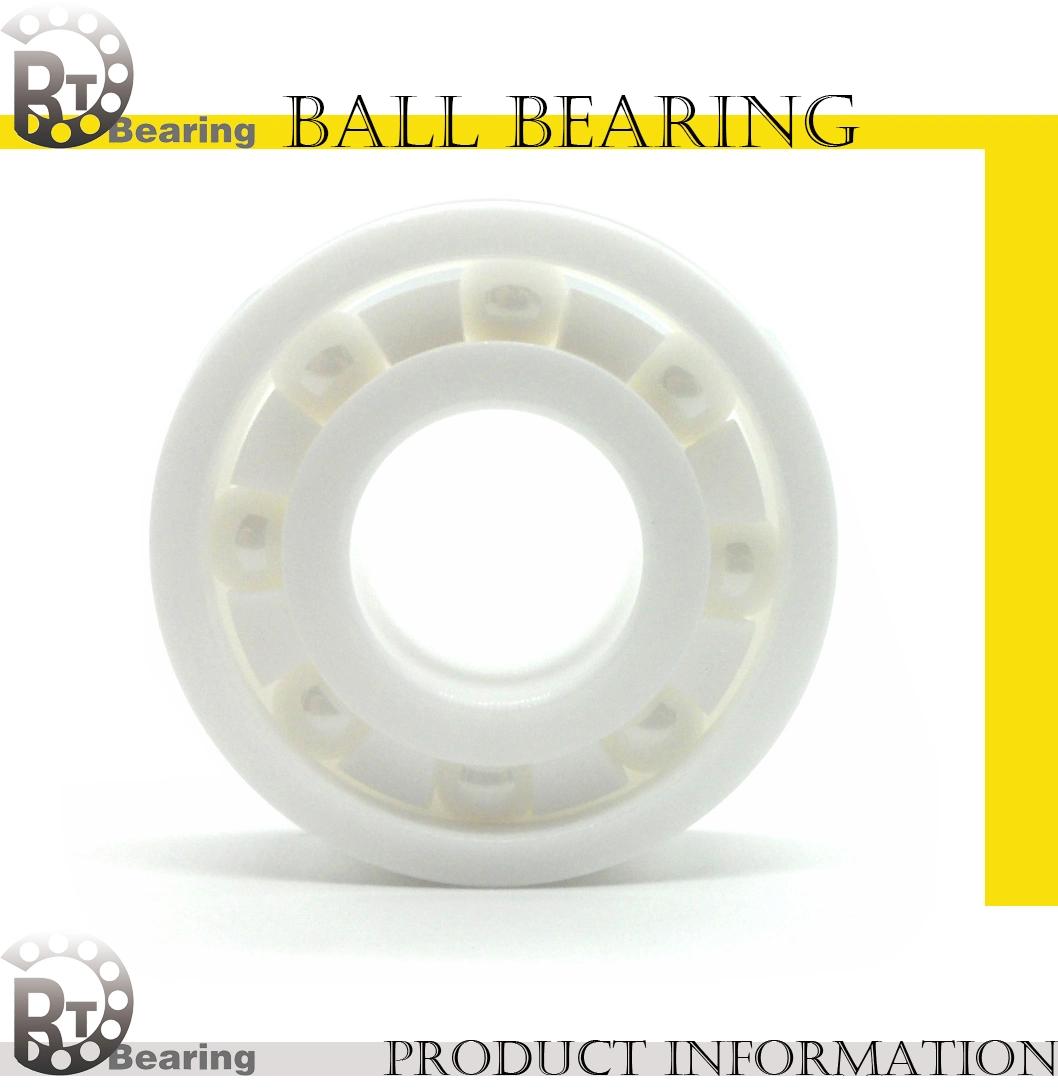

The rings and balls of all-ceramic deep groove ball bearings are made of silicon nitride (Si3N4) ceramic material. This bearing can be designed as a full ball or with PTFE, PEEK or stainless steel 304/316 cage. PTFE is the default standard cage.

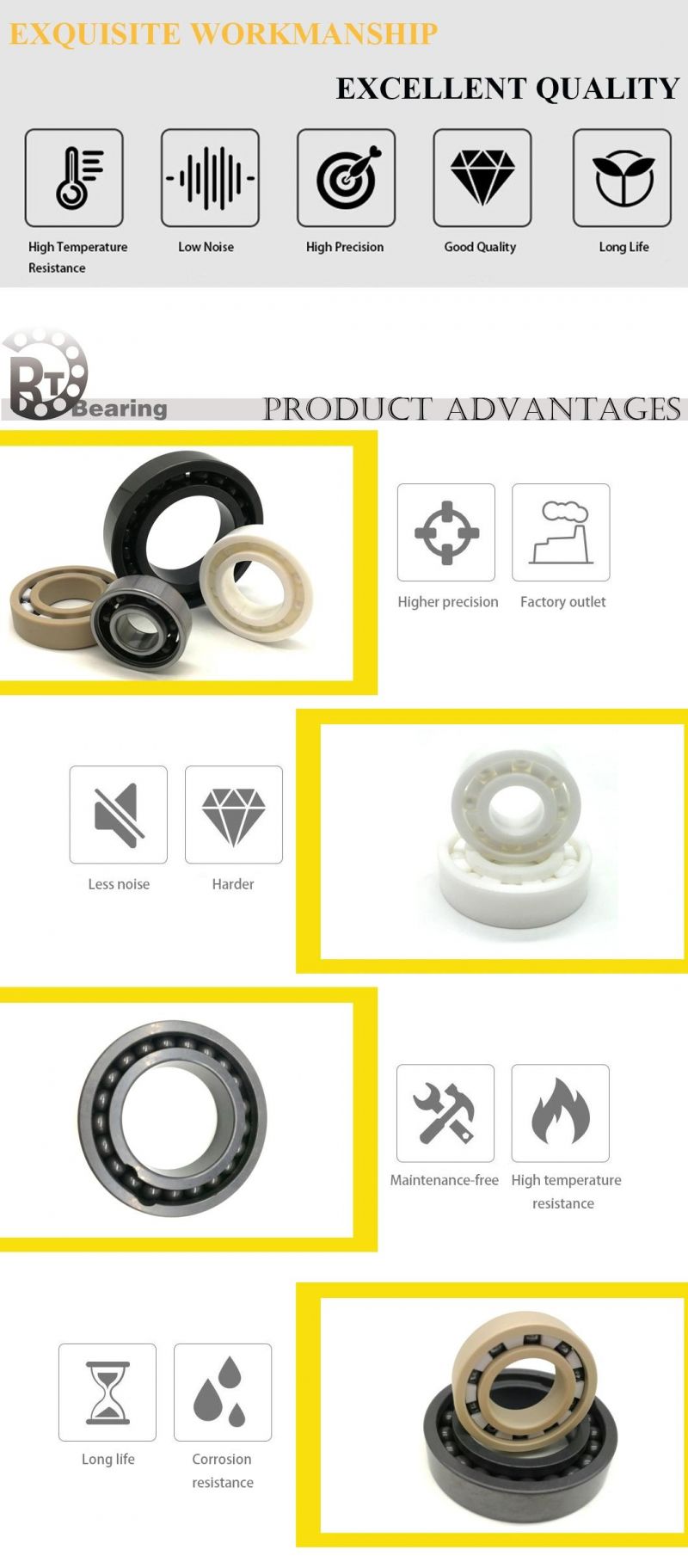

Full ceramic deep groove ball bearings have the characteristics of non-magnetic and electrical insulation, wear-resistant and corrosion-resistant, oil-free and self-lubricating, high temperature and cold resistance, and can be used in extremely harsh environments and special working conditions. It can be used in high temperature environment above 400ºC under the condition of full ball or equipped with stainless steel 316 cage. The PEEK cage can also be used at temperatures above 250°C. For polar temperatures (for example, lower than -70°C), full ceramic bearings with PTFE cages or stainless steel 316 cages can be used. Normally, the normal radial clearance is C0. When it is necessary to adapt to the extreme environment, other clearances can be customized.

Bearing No.	d	D	B
BRAND: NSK FAG RTB OEM ODM	mm	mm	mm
HCS71900-E-T-P4S	10	22	6
HCS71901-E-T-P4S	12	24	6
HCS71902-E-T-P4S	15	28	7
HCS71903-E-T-P4S	17	30	7
HCS71904-E-T-P4S	20	37	9
HCS71905-E-T-P4S	25	42	9
HCS71906-E-T-P4S	30	47	9
HCS71907-E-T-P4S	35	55	10
HCS71908-E-T-P4S	40	62	12
HCS71909-E-T-P4S	45	68	12
HCS71910-E-T-P4S	50	72	12
HCS71911-E-T-P4S	55	80	13
HCS71912-E-T-P4S	60	85	13
HCS71913-E-T-P4S	65	90	13
HCS71914-E-T-P4S	70	100	16
HCS71915-E-T-P4S	75	105	16
HCS71916-E-T-P4S	80	110	16
HCS71917-E-T-P4S	85	120	18
HCS71918-E-T-P4S	90	125	18
HCS71919-E-T-P4S	95	130	18
HCS71920-E-T-P4S	100	140	20
HCS71921-E-T-P4S	105	145	20
HCS71922-E-T-P4S	110	150	20
HCS71924-E-T-P4S	120	165	22
HCS71926-E-T-P4S	130	180	24
HCS71928-E-T-P4S	140	190	24
HCB7000-C-T-P4S	10	26	8
HCB7001-C-T-P4S	12	28	8
HCB7002-C-T-P4S	15	32	9
HCB7003-C-T-P4S	17	35	10
HCB7004-C-T-P4S	20	42	12
HCB7005-C-T-P4S	25	47	12
HCB7006-C-T-P4S	30	55	13
HCB7007-C-T-P4S	35	62	14
HCB7008-C-T-P4S	40	68	15
HCB7009-C-T-P4S	45	75	16
HCB7010-C-T-P4S	50	80	16
HCB7011-C-T-P4S	55	90	18
HCB7012-C-T-P4S	60	95	18
HCB7013-C-T-P4S	65	100	18
HCB7014-C-T-P4S	70	110	20
HCB7015-C-T-P4S	75	115	20
HCB7016-C-T-P4S	80	125	22
HCB7017-C-T-P4S	85	130	22
HCB7018-C-T-P4S	90	140	24
HCB7019-C-T-P4S	95	145	24
HCB7020-C-T-P4S	100	150	24
HCB7021-C-T-P4S	105	160	26
HCB7022-C-T-P4S	110	170	28
HCB7024-C-T-P4S	120	180	28
HCB7026-C-T-P4S	130	200	33
HCB7028-C-T-P4S	140	210	33
HCB7030-C-T-P4S	150	225	35
HCB7032-C-T-P4S	160	240	38
HCB7034-C-T-P4S	170	260	42
HCB7036-C-T-P4S	180	280	46
HCB7038-C-T-P4S	190	290	46
HCB7040-C-T-P4S	200	310	51
HCB7000-E-T-P4S	10	26	8
HCB7001-E-T-P4S	12	28	8
HCB7002-E-T-P4S	15	32	9
HCB7003-E-T-P4S	17	35	10
HCB7004-E-T-P4S	20	42	12
HCB7005-E-T-P4S	25	47	12
HCB7006-E-T-P4S	30	55	13
HCB7007-E-T-P4S	35	62	14
HCB7008-E-T-P4S	40	68	15
HCB7009-E-T-P4S	45	75	16
HCB7010-E-T-P4S	50	80	16
HCB7011-E-T-P4S	55	90	18
HCB7012-E-T-P4S	60	95	18
HCB7013-E-T-P4S	65	100	18
HCB7014-E-T-P4S	70	110	20
HCB7015-E-T-P4S	75	115	20
HCB7016-E-T-P4S	80	125	22
HCB7017-E-T-P4S	85	130	22
HCB7018-E-T-P4S	90	140	24
HCB7019-E-T-P4S	95	145	24
HCB7020-E-T-P4S	100	150	24
HCB7021-E-T-P4S	105	160	26
HCB7022-E-T-P4S	110	170	28
HCB7024-E-T-P4S	120	180	28
HCB7026-E-T-P4S	130	200	33
HCB7028-E-T-P4S	140	210	33
HCB7030-E-T-P4S	150	225	35
HCB7032-E-T-P4S	160	240	38
HCB7034-E-T-P4S	170	260	42
HCB7036-E-T-P4S	180	280	46
HCB7038-E-T-P4S	190	290	46
HCB7040-E-T-P4S	200	310	51

About us

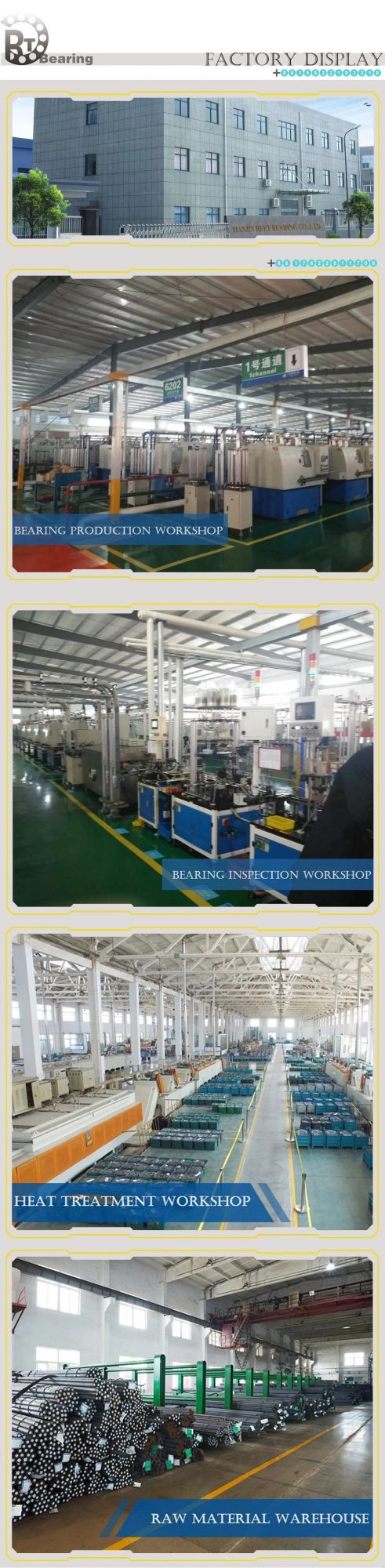

TIANJIN REET BEARING.CO.,LTD is a professional bearing manufacturer and exporter.
We have a wealth of technical.All producing processes are finished in our manufactory. As an ISO9001:2000 certified manufacturer,we will solve various problems in application and use of our bearings.
Our company is an authorized distributor of FAG, INA, TIMKEN and other world brand bearings.Our company has the right to self-export bearings and launches its own brand RTB.
Our bearing had been exported to more than twenty countries worldwide and are warmly welcomed.
We are looking forward to your order.
FAQ

1.Is the company a production factory or a trading company?
TIANJIN REET BEARING CO.,LTD is a manufacturing enterprise focusing on bearings and integrating research, production and sales.

2.How many the MOQ of your company?
Depending on the size of the bearing, the MOQ is variable, if you are interested, you can contact me for a quote.

3.Does the company accept OEM or customized bearings?
In addition to standard products, we also supply non-standard and modified standard products for special application. Meanwhile, we provide OEM service.

4.Can the company provide free samples?
We can provide samples for free. You only need to provide shipping.

5.What are the company's delivery terms?
We can accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient cost effective for you.
