Slewing Bearing for Radiation Therapies 11-20 1091/1-32172
Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.- Rolling Body：Roller Bearings
- The Number of Rows：Multi-column
- Outer Dimension：200-6500mm
- Material：42CrMo
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
Base Info
- Model NO.：11-20 1091,1-32172
- Separated：Unseparated
- Brand：Lyhy
- Custom Design：Available
- Company History：Since 1993
- Testing：in House
- Gear Hardness：HRC50-55
- Transport Package：Wooden Box
- Specification：need to be discussed
- Trademark：LYHY
- Origin：Luoyang City, China
- HS Code：848210900
- Production Capacity：10PCS,Month
Description
Why choose LYHY slewing bearings
A pioneer in slewing bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
SO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slewing bearing
LYHY Slewing Bearing Types

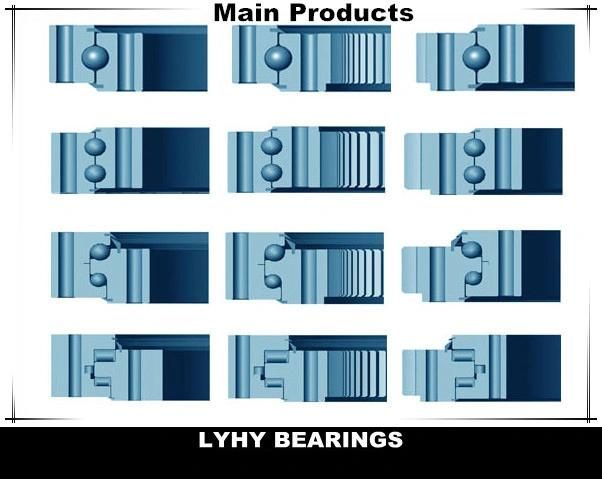

LYHY slewing bearings can be divided into the following types as per their structures:
single row four point contact ball slewing bearing,
single row cross roller slewing bearing,
double row different ball diameter slewing bearing,
three row cylindrical roller slewing bearing and roller/ball combination slewing bearing.
And all these types of slewing bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.
Detailed description of these types slewing bearings
Single row four point contact ball slewing bearings
This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.
About LYHY bearings

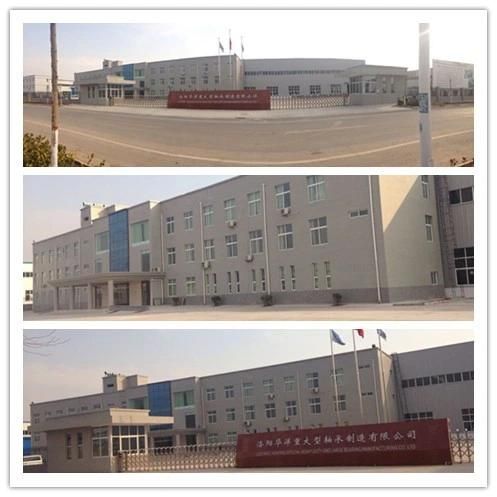

1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia
Single row ball slewing ring bearing
1. Introduction of LYHY single row ball slewing bearings
LYHY is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball bearings, roller bearings and precision bearings as per customer's different technical requirements.
Slewing bearing is also called slewing ring, slewing ring bearing, turntable bearing, and rotary bearing.
The single row ball slewing ring bearing is composed of 2 seat-rings. The balls contact with the circular race at four points, via which the axial force, radial force and resultant moment may be born simultaneously.
2. Structure
Slewing ring bearings have different types as per different structures, here below is what we offering now:
Single row ball slewing bearing has three different types:
Single row ball slewing bearing with no gear
Single row ball slewing bearing with external gear
Single row ball slewing bearing with internal gear
3. Features
Single row ball slewing ring bearings have following features:
Compact in structure and light in weight.
4. Application:
Single row ball slewing ring bearings are widely used in slewing conveyers, welding arm and positioned, medium duty cranes, excavators and other engineering machines
