Hourglass Worm Dual Worm Slewing Drive Slewing Gear
Coresun Drive Equipment Changzhou Co., Ltd.- Material：42CrMo
- Holding Torque：72.3kn.M
- Tilting Moment Torque：135.6kn.M
- Output Torque：21kn.M
- Output Speed：1rpm
- Gear Ratio：102:1
Base Info
- Model NO.：SC17-2-RH
- IP Class：IP65
- Static Axial Load：970kn.M
- Static Radial Laod：390kn.M
- Precision：0.15 Degree
- Corrosion Protection：C4
- Mechanical Efficiency：40%
- Transport Package：Standard Exporting Package
- Specification：SC17-2-RH
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
SC17-2
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Material
42CrMo,50Mn
Output Torque
21KN.m
Tilting Moment Torque
135.6KN.m
Holding Torque
72.3K N.m
Static Axial Rating
970KN
Static Radial Rating
390KN
Dynamic Axial Rating
235KN
Dynamic Radial Rating
205KN
Gear Ratio
102:1
Efficiency
40%
Rotation drive slewing drive, it is a kind of integration of driving power source of the week rotary reducer drive mechanism, its slewing bearing as transmission follower and adhesion mechanism, through the rotary bearing inner and outer circle a circle on the initiative of the cover, driving source and shell, and the other a circle both as a follower, and the connection of the base as driven working parts, so using the rotary bearing itself is the week characteristics of rotary joints, efficient allocation of driving power source and the main transmission parts, make it become a kind of rotary, slow down and drive function in a body and at the same time, simple structure, manufacture and maintenance convenient universal reduction drive mechanism.
According to the variable speed drive of rotation drive form, can be divided into type rotary gear rotation drive and the worm and worm wheel drive, inherit the characteristics of gear transmission and worm gear and worm drive each, are the two kinds of rotation drive can be adapted to high speed and low speed applications, in terms of bearing capacity, performance is superior to the tooth worm gear and worm type, and when envelope worm drive is used, its bearing capacity, deformation resistance and transmission have further improve rigidity, but the worm gear and worm type rotary drive in efficiency is inferior to tooth rotation drive.
Slewing drive is consist of slewing bearing,worm shaft,housing,bearing,motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.Slewing drive is able to sustain more axial load, radial load and tilting moment.Turntable or frame rotate at azimuth and elevation driven by slewing drive.Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger derricks, and automotive lifts.
Rotary drive slewing drive worm gear is a perfect combination of turbine worm products, worm ring surface envelope form, its tooth contact area is large, so the transmission torque is large, stable operation.
1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems (QMS) of ISO 9001:2015 and GB/T19001-2008.
2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.
3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.

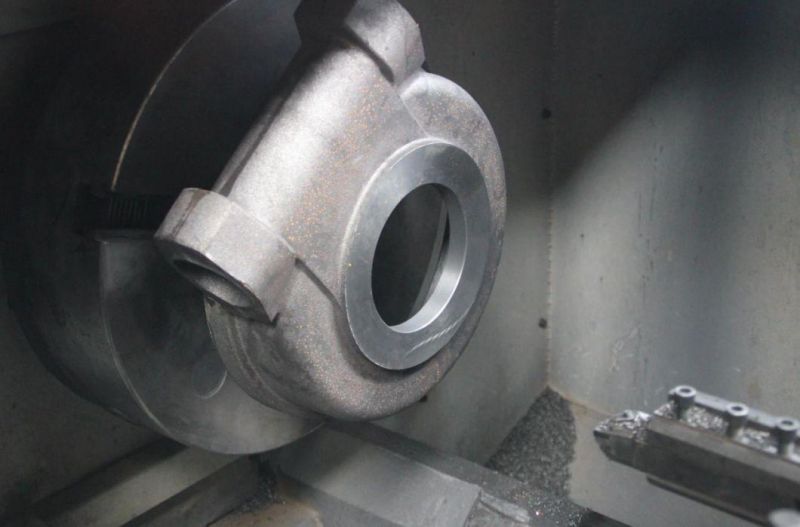

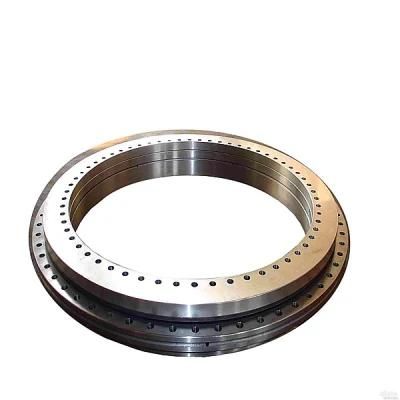

Production Photo and Application
Aerial working platform slewing drive turntable
Truck mounted crane slewing gear motor

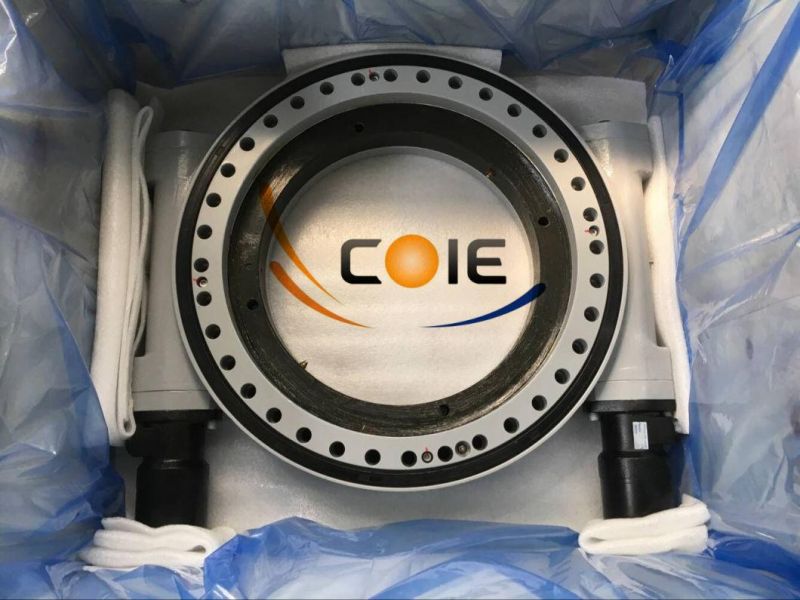

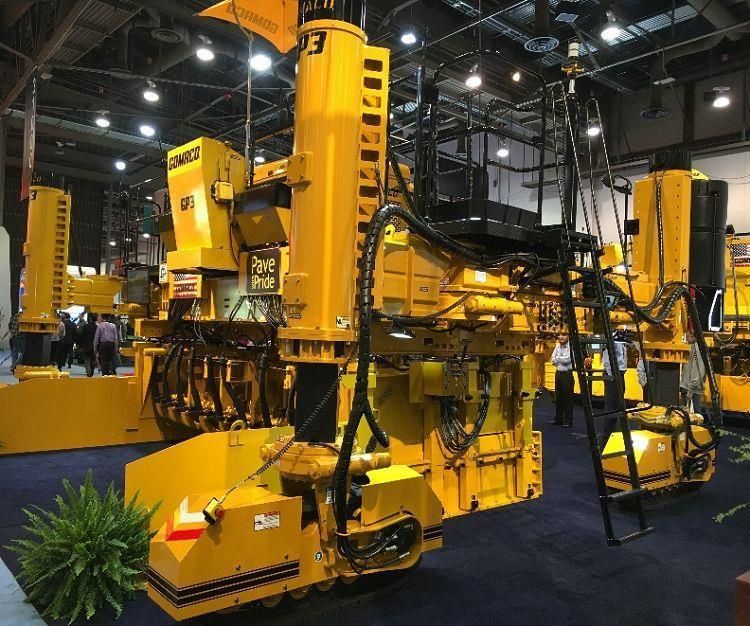

Timber grab worm drive slewing ring Dual worm slewing drive for drilling rig
Coresun Drive makes the holding torque testing to ensure the quality and safety factor on our slewing drive and bearing.Quality is our foundation for the long-term development.

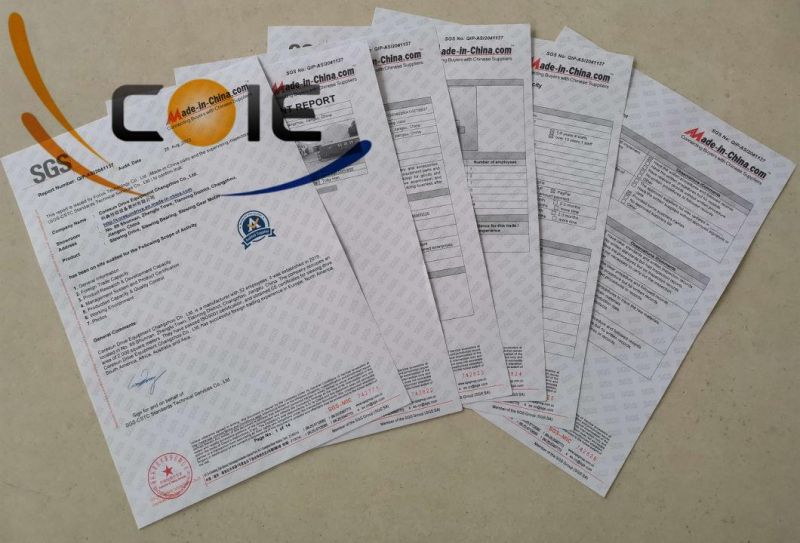

Slewing Drive Testing Report
