Four Row Cylindrical Roller Bearing Fcd80112400 with ISO Certification

Luoyang Bearing Research Institute Co., Ltd.
  • Rolling Body：Roller Bearings
  • The Number of Rows：Multi-column
  • Outer Dimension：Large (200-430mm)
  • Material：Bearing Steel
  • Spherical：Non-Aligning Bearings
  • Load Direction：Radial Bearing

Base Info

  • Model NO.：FCD80112400
  • Separated：Separated
  • Roller Bearings：Four-Row Cylindrical Roller Bearings
  • Breadth：192mm
  • Inner Diameter：200mm
  • Accuracy Grade：P5,P4,P2
  • Sealing Type：Seal or Not
  • Rated Load(Kn)：Cor:1430 Cr:3450
  • Weight：42.5kg
  • Outer Diameter：290mm
  • Transport Package：Cases and Pallets
  • Specification：dimension for Cylindrical Roller Bearing
  • Trademark：ZYS
  • Origin：Luoyang, Henan, China
  • Production Capacity：10000000PCS,Year

Description

Basic Info.

Model NO. FCD80112400 Separated Separated Roller Bearings Four-Row Cylindrical Roller Bearings Breadth 192mm Inner Diameter 200mm Accuracy Grade P5/P4/P2 Sealing Type Seal or Not Rated Load(Kn) Cor:1430 Cr:3450 Weight 42.5kg Outer Diameter 290mm Transport Package Cases and Pallets Specification dimension for Cylindrical Roller Bearing Trademark ZYS Origin Luoyang, Henan, China Production Capacity 10000000PCS/Year

Product Description

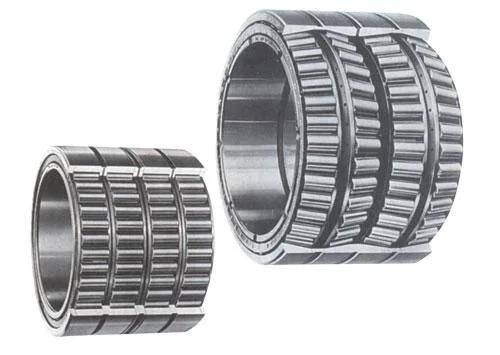

Four Row Cylindrical Roller Bearing FCD80112400 with ISO Certification Four Row Cylindrical Roller Bearing Fcd80112400 with ISO Certification

Four-row cylindrical roller bearings are mainly used for heavy machinery, such as for supporting rollers used in rolling mills such as roughing mills, profile mills, and sheet mills. Four-row cylindrical roller bearings are classified into FC type, FCD type and FCDP type according to whether there is a rib on the outer ring and whether the inner ring is one or two. Still some inner holes are structural forms of tapered holes.

All types of four-row cylindrical roller bearings can only withstand radial loads, so they must be used with thrust bearings, such as angular contact ball bearings, tapered roller bearings, etc.

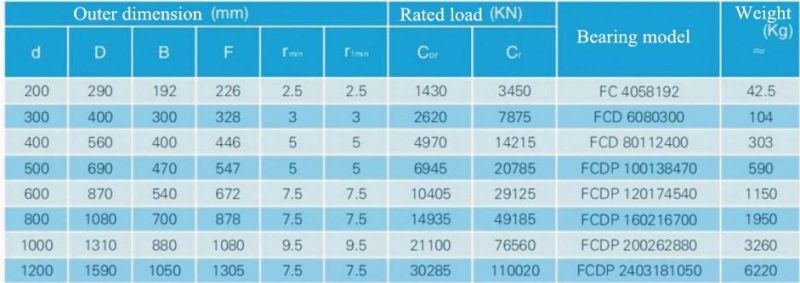

Technical parameters of Four Row Cylindrical Roller Bearing:

Four Row Cylindrical Roller Bearing Fcd80112400 with ISO Certification

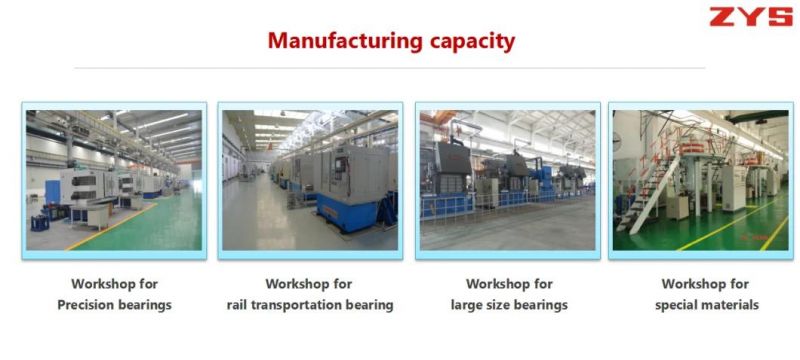

ZYS MANUFACTURING CAPACITY
Four Row Cylindrical Roller Bearing Fcd80112400 with ISO Certification

ZYS Quality assurance
Four Row Cylindrical Roller Bearing Fcd80112400 with ISO Certification

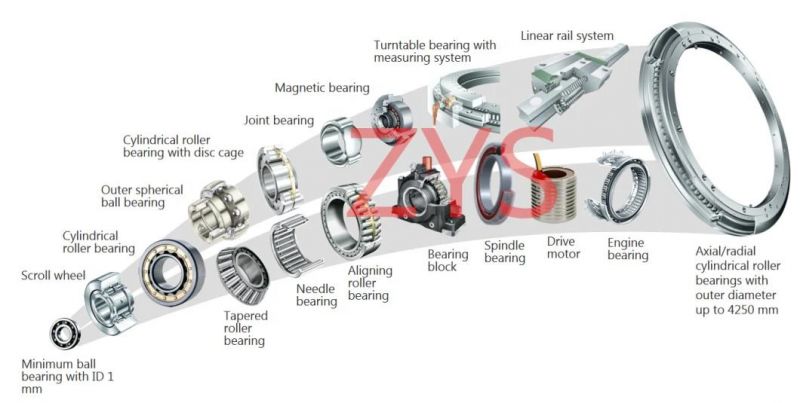

ZYS bearing products
Four Row Cylindrical Roller Bearing Fcd80112400 with ISO Certification

ZYS Packing :

Four Row Cylindrical Roller Bearing Fcd80112400 with ISO Certification


FAQ:

Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.


Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail to zysdong@gmail.com for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
