Zys Auto Part Motorcycle Spare Part Deep Groove Ball Bearing 6000 6001 6002 6200 6300 6301 2RS Zz Tapered Roller Bearing 30213 32213 for Motorcycle Industry
Luoyang Bearing Research Institute Co., Ltd.- Contact Angle：0
- Aligning：Non-Aligning Bearing
- Separated：Separated
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Bearing Steel
Base Info
- Model NO.：6000 6001 6002 6200 6300 6301 2RS Zz
- Inner Diameter：17-110mm
- Accuracy Class：P4,P2
- Sealing Type：Sealed or Not
- Rolling Body：Ball Bearings
- The Number of Rows：Single
- Spherical：Non-Aligning Bearings
- Outer Dimension：35-280mm
- Transport Package：Cases and Pallets or as Customer′s Requirment
- Specification：high quality
- Trademark：ZYS
- Origin：Luoyang, Henan, China
- HS Code：8482102000
- Production Capacity：40000,Month
Description
Part No.Boundary dimensions (mm) Basic load ratings(Lbf) Weight(lb) d D B Dynamic(Cr) Static(Cor) 6000 10 26 8 1030 445 0.042 6001 12 28 8 1147 535 0.048 6002 15 32 9 1254 641 0.068 6003 17 35 10 1349 731 0.088 6004 20 42 12 2109 1129 0.150 6005 25 47 12 2248 1315 0.172 6006 30 55 13 2967 1866 0.242 6007 35 62 14 3642 2360 0.326 6008 40 68 15 3867 2653 0.407 6009 45 75 16 4721 3327 0.506 6010 50 80 16 4946 3642 0.568 6011 55 90 18 6789 4901 0.796 6012 60 95 18 7081 5440 0.847 6013 65 100 18 6857 5665 0.957 6014 70 110 20 8565 6947 1.324 6015 75 115 20 8902 7531 1.404 6016 80 125 22 10701 8947 1.870 6017 85 130 22 11128 9689 1.958 6018 90 140 24 13084 11173 2.552 6019 95 145 24 13578 12117 2.662 6020 100 150 24 13533 12185 2.750 6021 105 160 26 16254 14792 3.498 6022 110 170 28 18434 16411 4.312 6024 120 180 28 18659 17535 4.796 6026 130 200 33 23380 22481 7.326 6028 140 210 33 24279 24279 7.832 6030 150 225 35 27427 28101 9.636 Model number Specification(mm) Weight New Old dxDxT (kg) 30214 7214E 70*125*26.25 1.27 30215 7215E 75*130*27.25 1.35 30216 7216E 80*140*28.25 1.65 30217 7217E 85*150*30.5 2.1 30218 7218E 90*160*32.5 2.52 30219 7219E 95*170*34.5 3.17 30220 7220E 100*180*37 3.8 30222 7222E 110*200*41 5.16 30224 7224E 120*215*43.5 6.27

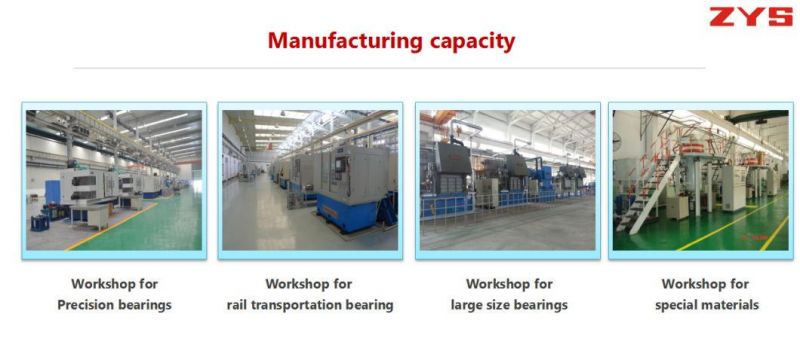

ZYS MANUFACTURING CAPACITY
ZYS Quality assurance

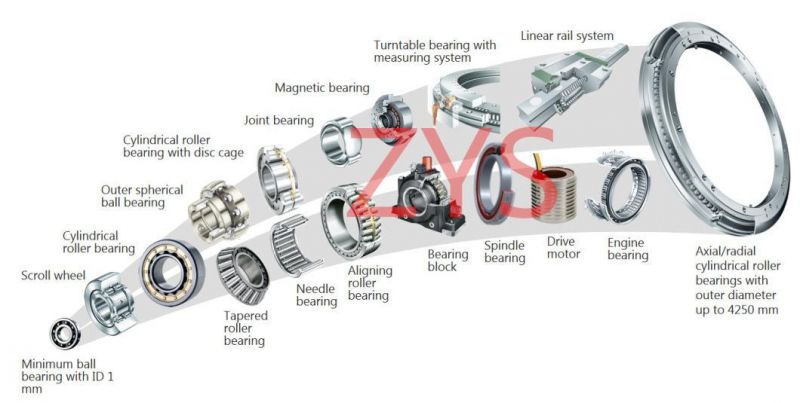

ZYS other bearing products
ZYS Packing :
FAQ:
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
General information of ZYS tapered roller bearings
Single row tapered roller bearings can support radial load and axial load in one direction. The radial load makes bearing generate an axial component force, therefore, this bearing is often used with another tapered roller bearings in conjunction. Tapered roller bearing can bear large axial load, but its speed performance is low. In addition, thanks to the separable inner and outer ring, mounting and dismounting tapered roller bearings are very convenient. The most commonly used tapered roller bearings in machine spindles are 32000 dimension series.
ZYS MANUFACTURING CAPACITY
ZYS Quality assurance
ZYS other bearing products
ZYS Packing :
FAQ:
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
