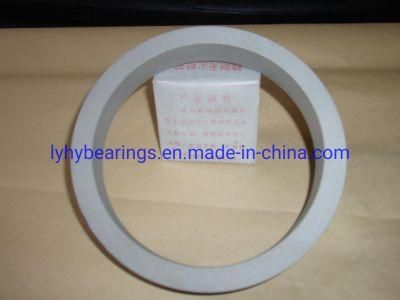

Thin Section Bearing for Cutting Machine
Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.- Rolling Body：Ball Bearings
- The Number of Rows：Single
- Outer Dimension：Medium and Large(120-190mm)
- Material：Gcr15
- Load Direction：Radial Bearing
- Separated：Unseparated
Base Info
- Model NO.：JU120XP0
- Brand：Kaydon Replaced
- Company History：Since 1993
- Operating Temperatures：-30 to +120
- Testing：in House
- Precision：All Tolerance as Per Kaydon Abec1
- Seal：Rubber Seal
- Delivery Time：45-50days
- Custom Design：Available
- Application：Cutting Machine
- Sample：1PCS Charge
- Transport Package：Wooden Box
- Specification：ISO
- Trademark：LYHY
- Origin：China
- HS Code：8482103000
- Production Capacity：100000PCS Per Year
Description
Type Dimension d D Width L1 L2 inch JA020XP0 2.00 2.50 0.25 2.15 2.36 JA025XP0 2.50 3.00 0.25 2.65 2.86 JA030XP0 3.00 3.50 0.25 3.15 3.36 JA035XP0 3.50 4.00 0.25 3.65 3.86 JA040XP0 4.00 4.50 0.25 4.15 4.36 JA042XP0 4.25 4.75 0.25 4.40 4.61 JA045XP0 4.50 5.00 0.25 4.65 4.86 JA047XP0 4.75 5.25 0.25 4.90 5.11 JA050XP0 5.00 5.50 0.25 5.15 5.33 JA055XP0 5.50 6.00 0.25 5.65 5.86 JA060XP0 6.00 6.50 0.25 6.15 6.36 JA065XP0 6.50 7.00 0.25 6.65 6.86 JB020XP0 2.00 2.63 0.31 2.14 2.36 JB025XP0 2.50 3.13 0.31 2.64 2.86 JB030XP0 3.00 3.63 0.31 3.14 3.36 JB035XP0 3.50 4.13 0.31 3.64 3.86 JB040XP0 4.00 4.63 0.31 4.14 4.36 JB042XP0 4.25 4.88 0.31 4.39 4.66 JB045XP0 4.50 5.13 0.31 4.64 4.86 JB047XP0 4.75 5.38 0.31 4.89 5.16 JB050XP0 5.00 5.63 0.31 5.14 5.36 JB055XP0 5.50 6.13 0.31 5.64 5.86 JB060XP0 6.00 6.63 0.31 6.14 6.36 JB065XP0 6.50 7.13 0.31 6.64 6.86 JG120XP0 12.00 14.00 1.00 12.55 13.60 JG140XP0 14.00 16.00 1.00 14.55 15.60 JG160XP0 16.00 18.00 1.00 16.55 17.60 JG180XP0 18.00 20.00 1.00 18.55 19.60 JG200XP0 20.00 22.00 1.00 20.55 21.60 JU040XP0 4.00 4.75 0.50 4.15 4.55 JU042XP0 4.25 5.00 0.50 4.40 4.80 JU045XP0 4.50 5.25 0.50 4.65 5.05 JU047XP0 4.75 5.50 0.50 4.90 5.30 JU050XP0 5.00 5.75 0.50 5.15 5.55 JU055XP0 5.50 6.25 0.50 5.56 6.04 JU060XP0 6.00 6.75 0.50 6.15 6.54 JU065XP0 6.50 7.25 0.50 6.65 7.04 JU070XP0 7.00 7.75 0.50 7.15 7.54 JU075XP0 7.50 8.25 0.50 7.65 8.04 JU080XP0 8.00 8.75 0.50 8.15 8.54 JU090XP0 9.00 9.75 0.50 9.15 9.54 JU100XP0 10.00 10.75 0.50 10.15 10.54 JU110XP0 11.00 11.75 0.50 11.15 11.54 JU120XP0 12.00 12.75 0.50 12.15 12.54
