• Model NO.：5210
• Place of Origin：Shandong China (Mainland)
• Transport Package：as Per Client′s Requirement
• Trademark：Yiding
• Origin：China
• HS Code：8482102000
• Production Capacity：60000 Pieces,Month

(mm)
Principal Dimensions
Designation(KN)
Basic Load ratings(rpm)
Limited Speed( kg)
Weight
≈dDB
Dynamic
Static
Grease
Oil1747147303C15.78.213000190000.06547147303AC15.07.713000190000.06547147303B14.18.113000170000.065203797904C6.84.220000280000.0353797904AC6.44.020000280000.03542127004C10.46.014000190000.06442127004AC10.05.714000190000.06447147204C14.58.113000180000.10047147204AC14.07.813000180000.10047147204B13.47.612000160000.11052157304C18.49.812000170000.15052157304AC17.99.612000170000.15052157304B17.39.611000150000.140254297905C7.85.418000260000.0424297905AC7.55.218000260000.04247127005C11.67.412000170000.07447127005AC11.17.012000170000.07452157205C16.510.011000160000.12052157205AC15.89.71100016000012052157205B14.89.310000140000.13062177305C27.815.99500140000.23062177305AC27.015.69500140000.23062177305B24.314.19000130000.230304797906C8.26.216000240000.0484797906AC7.96.016000240000.04855137006C15.110.29500140000.11055137006AC14.49.89500140000.11062167206C23.014.79000130000.19062167206AC22.113.59000130000.19062167206B20.513.58500120000.20072197306C33.221.28500120000.35072197306AC32.820.48500120000.35072197306B29.318.18000110000.34090237406C57.533.8650085000.96090237406AC55.632.7650085000.96090237406B51.430.1600080000.900
Quick Details
Structure: Angular Contact
Type: Ball
Bore Size: 20 - 500 mm
Outside Diameter: 10 - 400 mm
Model Number: All series type
Precision Rating: P0, p6, p5, p4
Seals Type: ZZ, 2RS, open
Number of Row: Single row or double row
Place of Origin: Shandong China (Mainland)

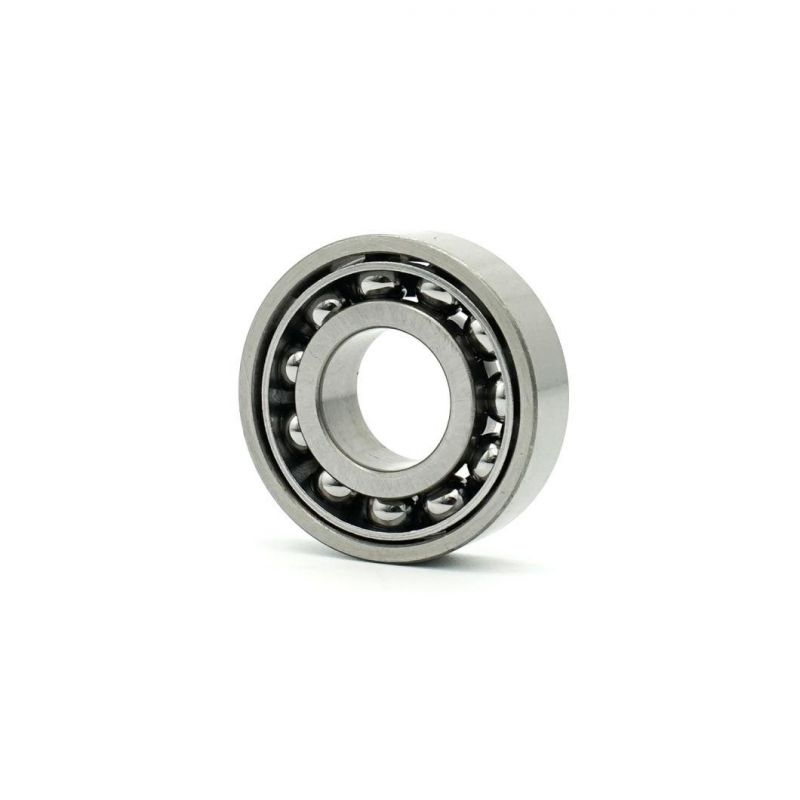

Ball bearing: Angular contact ball bearing
Service: OEM
Material: Chrome steel
Cage: Brass, nylon

Specifications
1. In high speed application
2. Combination arbitrarily
3. Lower noise and higher speed
4. Higher rated load

Packaging & Delivery
Packaging Detail: Angular contact ball bearing 1. Neutral Package: Plastic Bag + Carton + Pallet; 2. Commercial Package: Plastic Bag + Box + Carton + Pallet; 3. As the clients' requirement.
Delivery Detail: 5-30days

Applications
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle.

BearingNo.	Bore(mm)	O.D.(mm)	Width(mm)	Weight (lbs)
7308	40	90	23	1.38
7309	45	100	25	1.85
7310	50	110	27	2.40
7311	55	120	29	3.06
7312	60	130	31	3.84
7313	65	140	33	4.65
7314	70	150	35	5.64
7315	75	160	37	6.77
7316	80	170	39	8.05
7317	85	180	41	9.57
7318	90	190	43	11.2
7319	95	200	45	13.0
7320	100	215	47	15.8
7321	105	225	49	18.1
7322	110	240	50	21.2
7324	120	260	55	32.4
7326	130	280	58	38.8
7328	140	300	62	47.4
7330	150	320	65	55.3
7332	160	340	68	65.7
7334	170	360	72	77.8
7336	180	380	75	90.2
7338	190	400	78	104
7340	200	420	80	117
7000C	10	26	8	0.042
