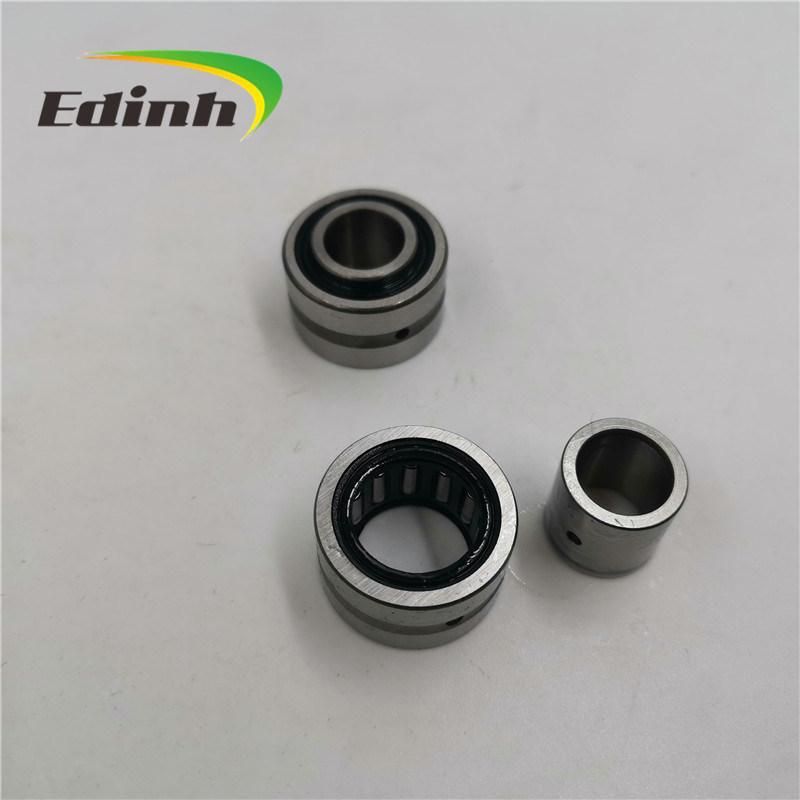

Na Series Bearing with Inner Ring Na6918 Needle Roller Bearing Na6917 Na6919 Na6916 Na6915 Na6914 Na6913 Na6912 Na6910

Zaozhuang Yiding Bearing Co., Ltd.

Cage：With Cage
Rows Number：Single
Load Direction：Radial Bearing
Style：With Outer Ring
Material：Bearing Steel
Type：Open

Base Info

Model NO.：Na6910
Transport Package：Box, Carton Box, Woodencase
Specification：HK series as your needs
Trademark：Edinh
Origin：China

Description

Designations :Na Series Bearing With Inner Ring Na6918 Needle Roller Bearing Na6917 Na6919 Na6916 Na6915 Na6914 Na6913 Na6912 Na6910 Needle Roller Bearing with Flanges without Inner Ring Ring Material :GCR15/ Machined SteelRoller Material :GCR15/ Chrome SteelCage Material :SteelNumber of Row :Single Row Precision Rating :P0 P6 P5 P4Application Industries :Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc.Price List :NegotiateService :OEM or Customer Logo Acceptable and Sample OfferPackage :Industrial Packing or As Customer RequiredMore Service :plz Contact Us . The contact address is at the bottom. Na Series Bearing with Inner Ring Na6918 Needle Roller Bearing Na6917 Na6919 Na6916 Na6915 Na6914 Na6913 Na6912 Na6910

Size:

Suitable for high radial load capacities .

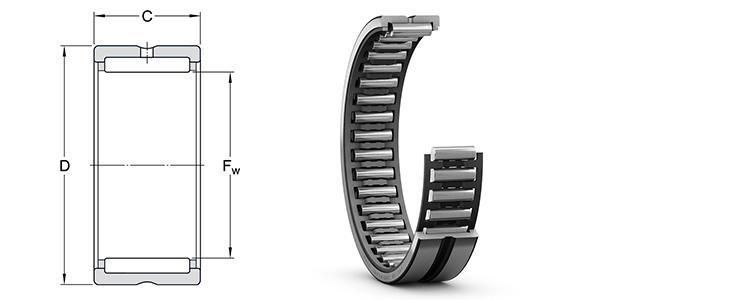

the following is basic design of single row needle roller bearing with flanges :

Na Series Bearing with Inner Ring Na6918 Needle Roller Bearing Na6917 Na6919 Na6916 Na6915 Na6914 Na6913 Na6912 Na6910

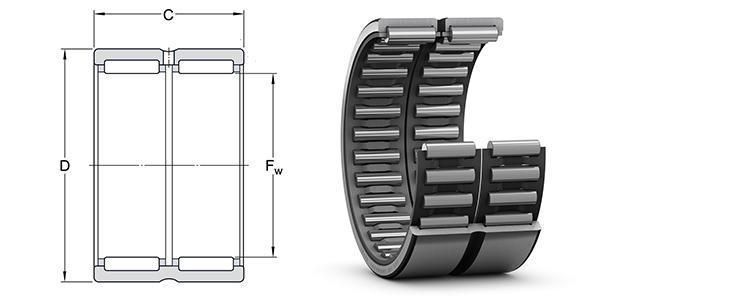

the following is basic design of double row needle roller bearing with flanges :

Na Series Bearing with Inner Ring Na6918 Needle Roller Bearing Na6917 Na6919 Na6916 Na6915 Na6914 Na6913 Na6912 Na6910

Princi	pal dimensions		Basic load	ratings	Speed	Mass	Designations
Fw	D	C	dynamic	static	reference	reference
mm			kn		r/min	kg
5	10	10	2.29	2	36000	0.0031	NK 5/10 TN
5	10	12	2.92	2.7	36000	0.0037	NK 5/12 TN
6	12	10	2.55	2.36	34000	0.0047	NK 6/10 TN
6	12	12	3.3	3.2	34000	0.0057	NK 6/12 TN
7	14	10	2.81	2.75	32000	0.0069	NK 7/10 TN
7	14	12	3.58	3.75	32000	0.0082	NK7/12 TN
8	15	12	3.8	4.25	32000	0.0087	NK 8/12 TN
8	15	16	5.01	5.85	32000	0.012	NK 8/16 TN
9	16	12	4.4	5.2	30000	0.01	NK 9/12 TN
9	16	16	5.72	7.2	30000	0.013	NK 9/16 TN
10	17	12	4.57	5.7	28000	0.01	NK 10/12 TN
10	17	16	5.94	8	28000	0.013	NK 10/16 TN
12	19	12	6.71	8.15	26000	0.012	NK 12/12
12	19	16	9.13	12	26000	0.016	NK 12/16
14	22	13	8.8	10.4	24000	0.017	RNA 4900
14	22	16	10.2	12.5	24000	0.021	NK 14/16
14	22	20	12.8	16.6	24000	0.026	NK 14/20
15	23	16	11	14	24000	0.022	NK 15/16
15	23	20	13.8	18.3	24000	0.027	NK 15/20
16	24	13	9.9	12.2	22000	0.017	RNA 4901
16	24	16	11.7	15.3	22000	0.022	NK 16/16
16	24	20	14.5	20	22000	0.028	NK 16/20
16	24	22	16.1	23.2	22000	0.031	RNA 6901

Certificate:
Na Series Bearing with Inner Ring Na6918 Needle Roller Bearing Na6917 Na6919 Na6916 Na6915 Na6914 Na6913 Na6912 Na6910

Transport:
Na Series Bearing with Inner Ring Na6918 Needle Roller Bearing Na6917 Na6919 Na6916 Na6915 Na6914 Na6913 Na6912 Na6910

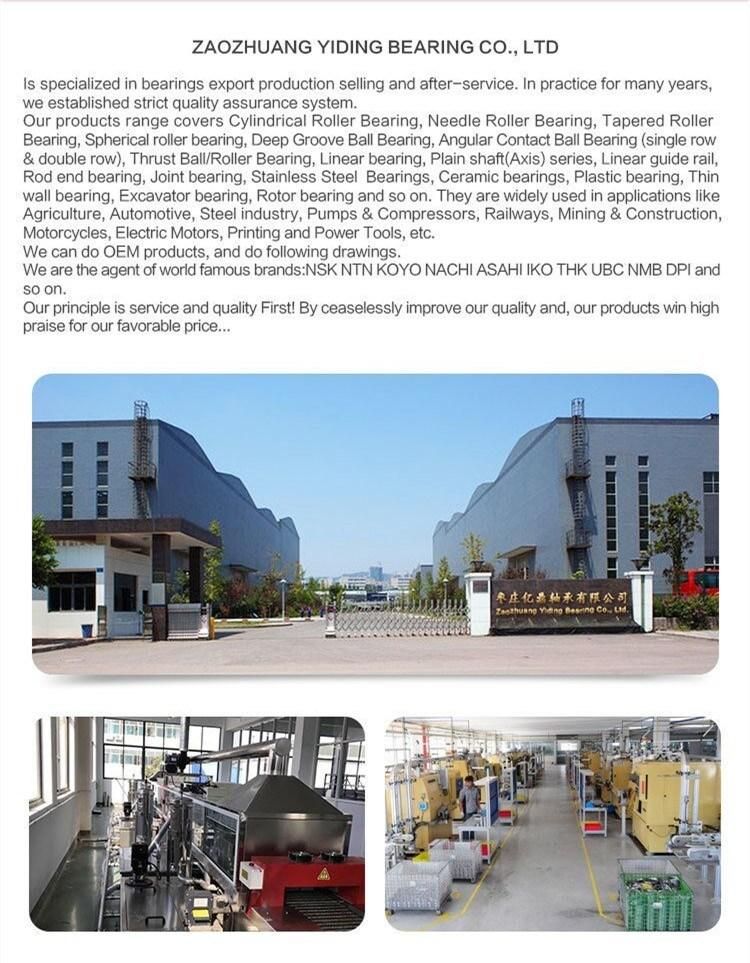

Company Profile:
