Automobile Joystick Boundary Lubricating Bronze Mesh Bushing
Performance IndexDataMax load capacity PStatic Load100N/mm?Dynamic Load80N/mm?Max line speed VGrease Lubrication1m/sPV value limit1.65N/mm?·m/sFriction coef u0.08~0.20Mating AxisHardnessRoughnessMaterialBronze mesh+PTFETypical applicationThe product is widely applied to textile machine, joint
-
Hydraulic Motor Boundary Lubricating Bushings
Performance IndexDataMax load capacity PStatic Load140N/mm?Dynamic Load100N/mm?Max line speed VGrease Lubrication2.5m/sPV value limit2.5N/mm?·m/sFriction coef u0.08~0.12Mating AxisHardness>270 HBRoughnessRa=0.4~1.25MaterialSteel+Bronze+(PTFE+PEEK)Typical applicationWork in high temperature
-
All Kinds pump Self-lubricating Steel DU Bushing
Performance IndexDataLoad capacity P(Dry friction)Static Load250N/mm?Dynamic Load140N/mm?Oscoillation Load60N/mm?Max line speed VDry Lubrication2.5m/sOil Lubrication>10m/sPV value limitGrease Lubrication1.8N/mm?· m/sOil Lubrication3.6N/mm?· m/sFriction coef uDry Lubrication0.08~0.20
-
Construction Machine Wrapped Bronze anti-erosion Bearing
Performance IndexDataMax Dynamic Load100N/mm2Max Linear Velocity(Grease)2m/sMax PV value(Grease)2.8m/sTensile StrengthYield StrengthHardnessMating AxisHardness≥50HRCRoughness0.4~1.0HRCWorking Temperature-40~+150ºCFriction Coefficient0.06~0.15μHeat Conducting Coefficient58W/(m·k)Hea
-
Mine-exploiting Equipments Solid Lubricating Copper Bushing
Performance IndexDataMaterialCuZn25AI5Mn4Fe3Density g/cm?8Hardness HB>210Tensile strength N/mm?>750Yeild strength N/mm?>340Elongation %>12Coefficient of linear expansion 10-5/ºC2.2Heat-conducting Coefficient W(/m.k)38~55Flexibility Coefficient KN/mm?100~140Temp. Limits ºC-40~+2
-
Cheap Price Wrapped Copper Sleeve Bushing

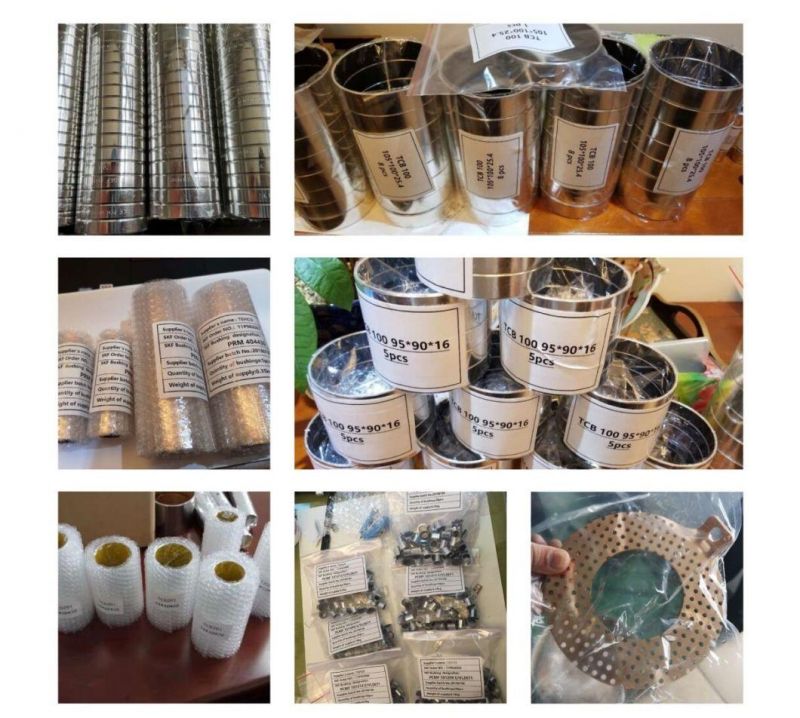

In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.Packing & ShippingPacking Details:1. Inner PackingFor small products: 100pcs-200pcs per sealed plastic bag.For bigger products: 2pcs-10pcs per plastic film rol
-
Customized Size Flanged Bronze Bushing with Oil Holes
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.Packing & ShippingPacking Details:1. Inner PackingFor small products: 100pcs-200pcs per sealed plastic bag.For bigger products: 2pcs-10pcs per plastic film rol
-
Custom Size Self Lubricated Flange Bronze Bushing
80N/mm²Packing & DeliveryPacking Details:1. Inner PackingFor small products: 100pcs-200pcs per sealed plastic bag.For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)2. Outer Packing&Shipment Packing8pcs-300pcs per carton (depends on the product size)18-
