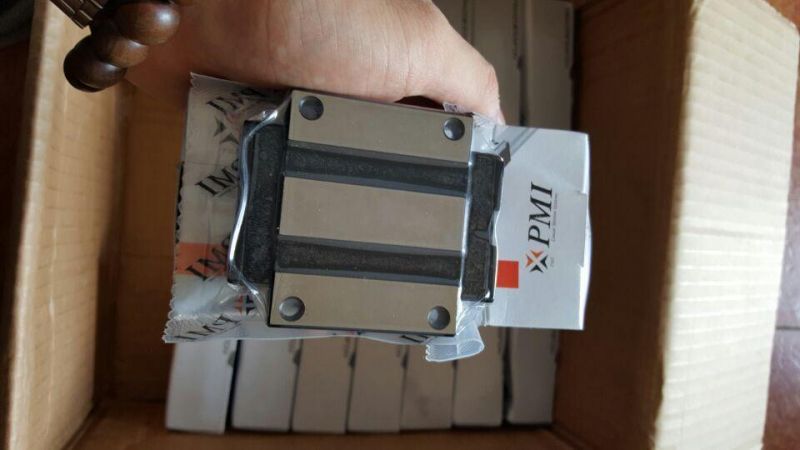

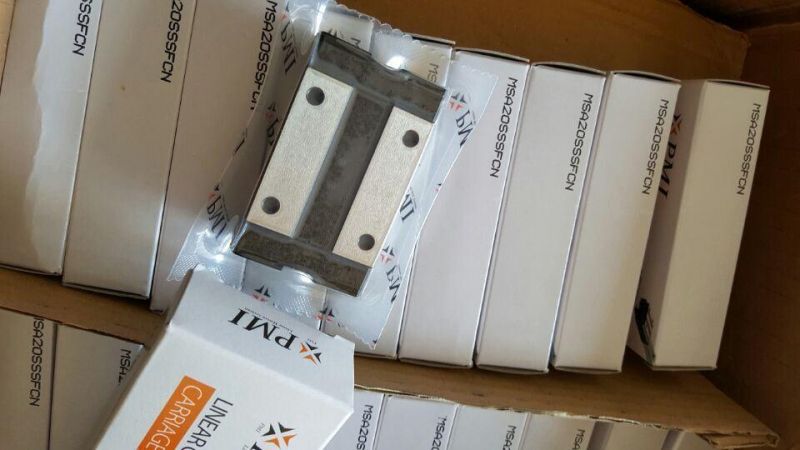

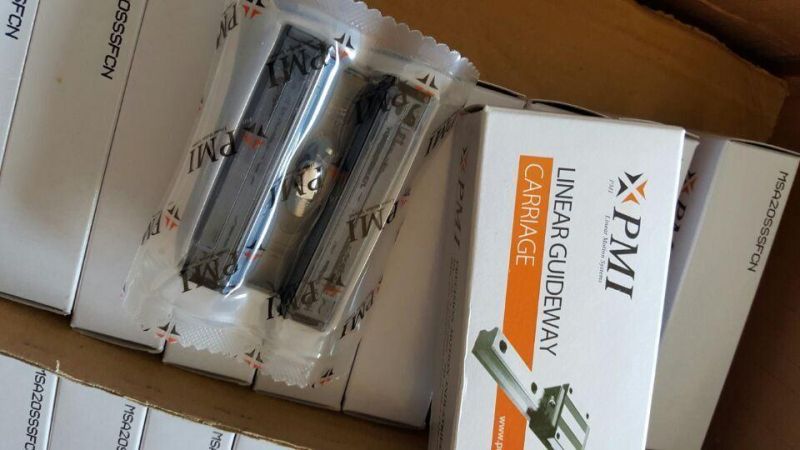

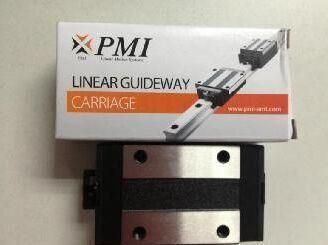

CNC Machine Parts PMI Linear Rail Carriage Msa20A Msa25A Msa35A Msa45A
Zaozhuang Yiding Bearing Co., Ltd.- Express：TNT, DHL, FedEx, EMS
- Precision Code：C, H, P
- Preload Code：Zo, Za, Zb
- Service：OEM Customized
- Other Brand：Hiwin Abba THK Tbi
- Shipping Way：by Air Exress or by Sea
Base Info
- Model NO.：MSA20A MSA25A MSA35A MSA45A
- Using：CNC Machine, 3D Printer, Machineary
- Application：Metal
- Process Usage：Metal-Cutting CNC Machine Tools
- Movement Method：Linear Control
- Control Method：Closed-Loop Control
- Numerical Control：CNC,Mnc
- Processing Precision：±0.05mm
- Certification：ISO 9001
- Condition：New
- Transport Package：as Per Client′s Requirement
- Specification：MSA20A MSA25A MSA35A MSA45A
- Trademark：PMI
- Origin：Taiwan
- HS Code：848330090
- Production Capacity：1000000 PCS,Year
Description
External dimensionCarriage dimension Rail dimension Weight Height Width Length Width Height Pitch Carriage Rail ModelNo. H W L W2 H2 B C W1 H1 P kg kg/m MSA15S 28 34 56.3 9.5 4.2 26 26 15 15 60 0.18 1.5 MSA20S 30 44 72.9 12 5 32 36 20 18 60 0.3 2.4 MSA20LS 88.8 50 0.39 MSA25S 40 48 81.6 12.5 6.5 35 35 23 22 60 0.52 3.4 MSA25LS 100.6 50 0.58 MSA30S 45 60 97 16 8 40 40 28 26 80 0.86 4.8 MSA30LS 119.2 60 1.12 MSA35S 55 70 111.2 18 9.5 50 50 34 29 80 1.45 6.6 MSA35LS 136.6 72 1.9 MSA45S 70 86 137.7 20.5 10 60 60 45 38 105 2.83 11.5 MSA45LS 169.5 80 3.7 MSA55S 80 100 161.5 23.5 13 75 75 53 44 120 4.12 15.5 MSA55LS 199.5 95 4.91 MSA65S 90 126 199 31.5 15 76 70 63 53 150 6.43 21.9 MSA65LS 253 120 8.76
