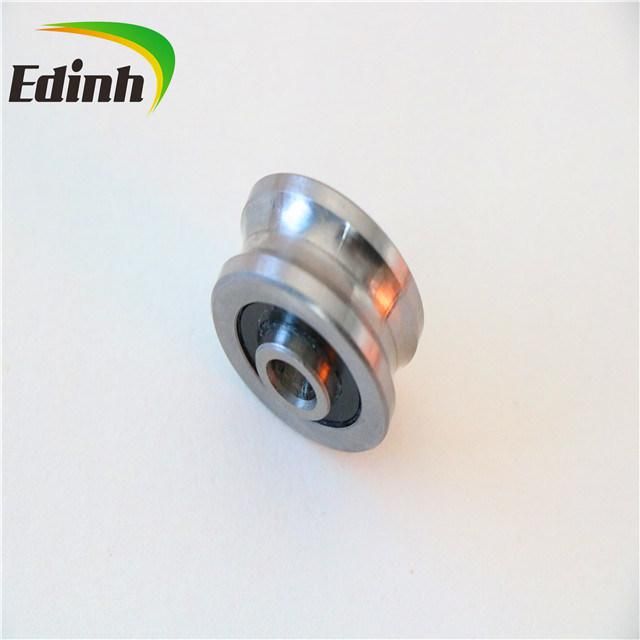

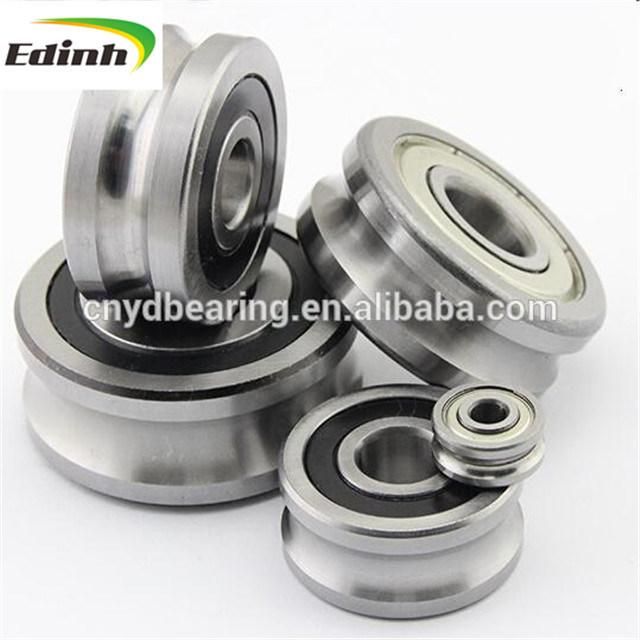

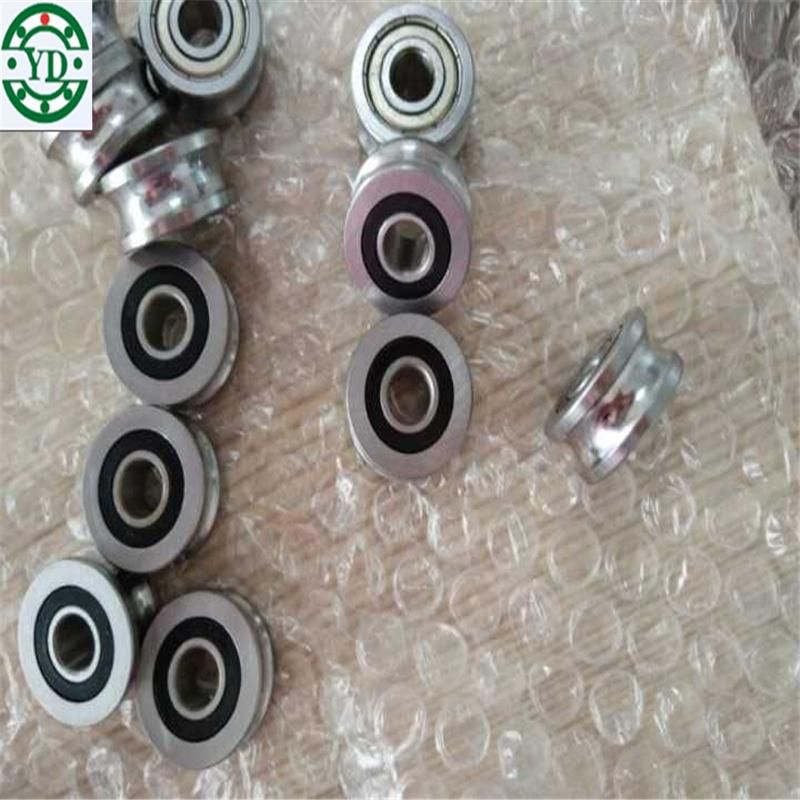

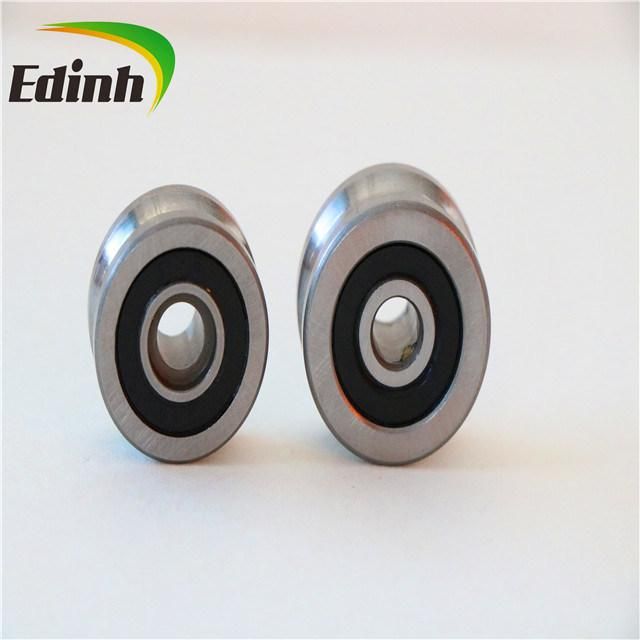

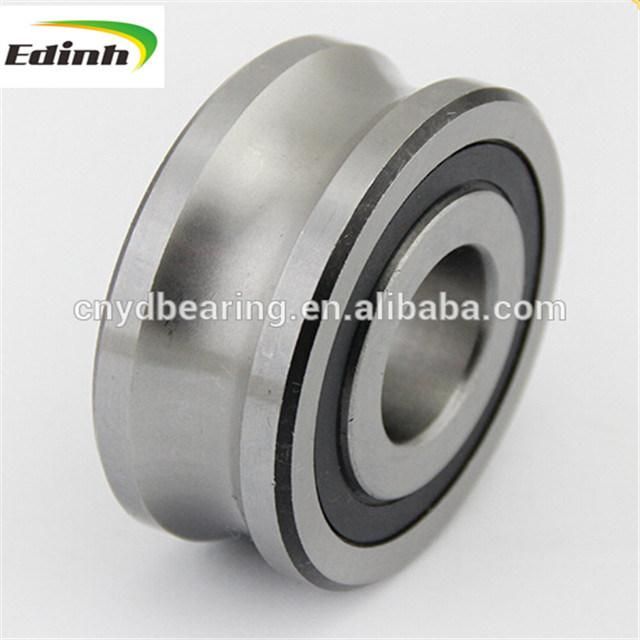

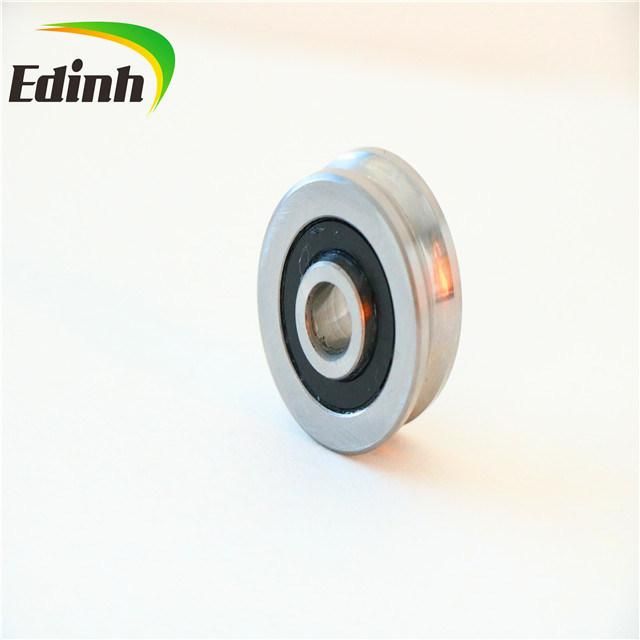

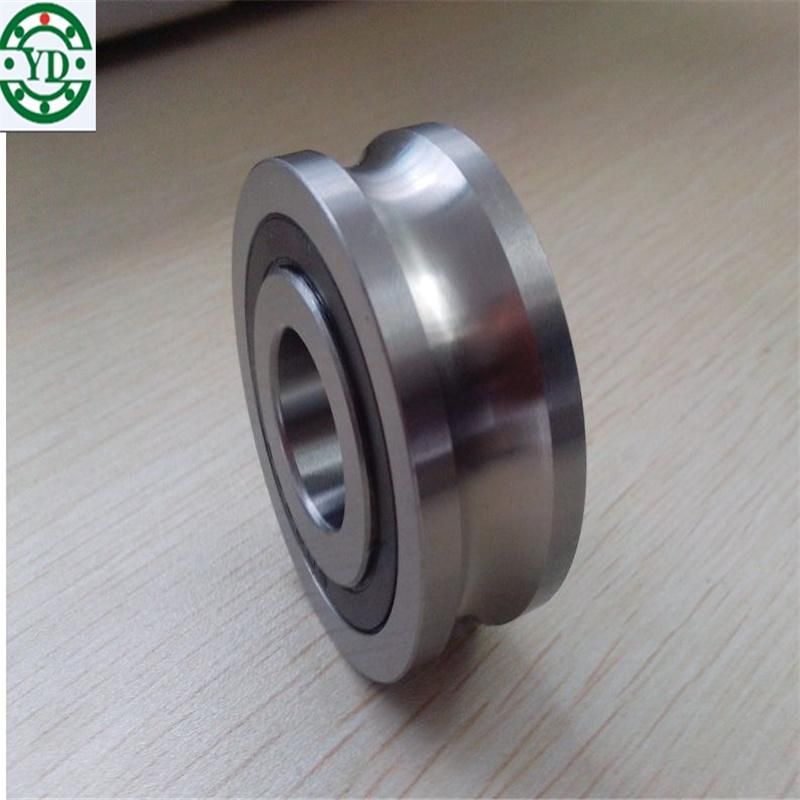

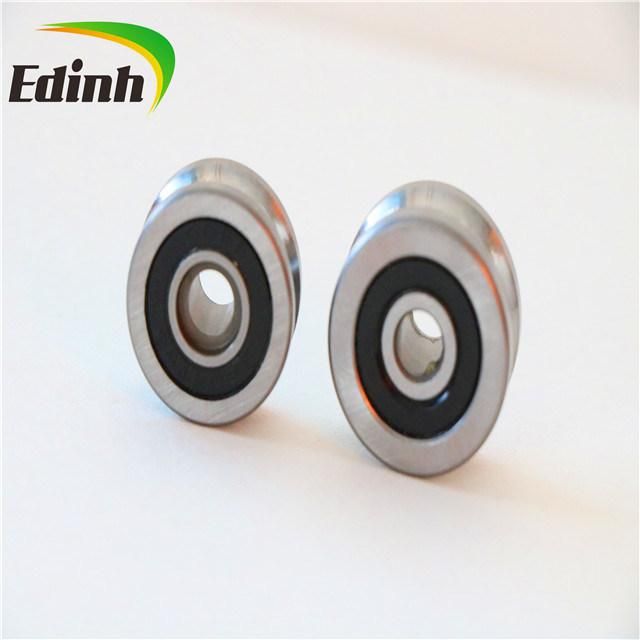

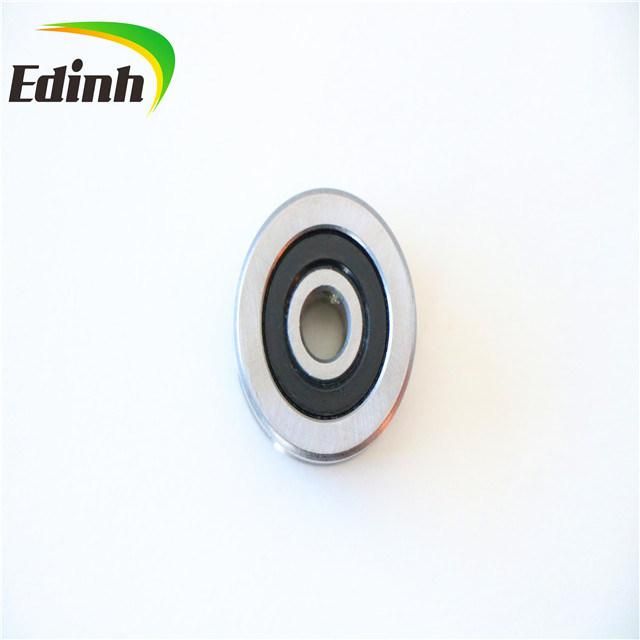

U Groove Guide Wheel Bearing Lfr5207-30kdd
Zaozhuang Yiding Bearing Co., Ltd.- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：10-60mm
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
Base Info
- Model NO.：LFR5207-30KDD
- Separated：Unseparated
- Place of Origin：Shandong China (Mainla
- Sample：Availabe
- OEM：Acceptable
- Seal Type：Zz 2RS
- Transport Package：According to Per Client′s Requirements
- Trademark：Netural
- Origin：China
- HS Code：8482200000
- Production Capacity：50000 Pieces,Month
Description
bearing
codeweight
(g) dimension(mm) load rating dw d D C B A rs Cw
(KN) Cow
(KN) Fr perm
(KN) LFR 50/4 NPP 3.5 5 4 13 6 7 8.04 0.2 1.05 0.85 1.15 LFR 50/5-4 KDD 7.5 4 5 16 7 8 9 0.2 1.2 0.86 1.3 LFR 50/5-4 NPP 7.5 4 5 16 7 8 9 0.2 1.2 0.86 1.3 LFR 50/5 KDD 8 6 5 17 7 8 10.5 0.2 1.27 0.82 1.3 LFR 50/5 NPP 8 6 5 17 7 8 10.5 0.2 1.27 0.82 1.3 LFR 50/8 KDD 24 6 8 24 11 11 14 0.3 3.67 2.28 1.3 LFR 50/8 NPP 24 6 8 24 11 11 14 0.3 3.67 2.28 1.3 LFR 50/8-8 KDD 24 8 8 24 11 11 14.75 0.3 3.67 2.28 1.3 LFR 50/8-8 NPP 24 8 8 24 11 11 14.75 0.3 3.67 2.28 1.3 LFR 30/8 KDD 31 10 8 26.8 11 13 16.7 0.3 3.67 2.28 1.3 LFR 30/8 NPP 31 10 8 26.8 11 13 16.7 0.3 3.67 2.28 1.3 LFR 5201 KDD 68 10 12 35 15.9 15.9 20.65 0.3 8.5 5.1 5.1 LFR 5201 NPP 68 10 12 35 15.9 15.9 20.65 0.3 8.5 5.1 5.1 LFR 5301 KDD 130 10 12 42 19 19 24 0.6 13 7.7 7.5 LFR 5301 NPP
