Brass Cage Angular Contact Ball Bearing

Luoyang Bearing Research Institute Co., Ltd.
  • Contact Angle：25°
  • Aligning：Aligning Bearing
  • Separated：Unseparated
  • Rows Number：Single
  • Load Direction：Radial Bearing
  • Material：SKF3

Base Info

  • Model NO.：7016ACP4MGB
  • Cage Material：Brass
  • Application：High Load High Speed
  • Transport Package：Single Package
  • Specification：ID>50mm
  • Trademark：ZYS
  • Origin：China
  • HS Code：8482103000
  • Production Capacity：50000 PCS,Year

Description

Basic Info.

Model NO. 7016ACP4MGB Cage Material Brass Application High Load High Speed Transport Package Single Package Specification ID>50mm Trademark ZYS Origin China HS Code 8482103000 Production Capacity 50000 PCS/Year

Product Description

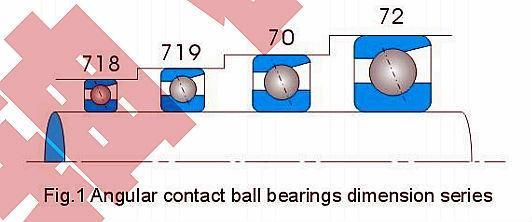

The ZYS precision angular contact ball bearings for spindles, have four size series,718,719,70 and 72. With the same inner diameter, the outer diameters and the widths of 718,719,70 and 72 series increase in turn.
.Zys High Speed Spindle Bearing Sealed Angular Contact Ball Bearing for Machine Tool Spindle, CNC Machine, High Frequency Motor, Gas Turbine, Robot Industry

ZYS precision angular contact ball bearing with 15 ° (C) and 25 ° (AC) contact angles. As for the angular contact ball bearings, the bigger the contact angle is, the greater the axial load capacity is, but the lower the limited speed of bearings becomes. Therefore ,the spindle, with high speed and small axial load ,should adopt the 15 ° angular contact ball bearings,whereas the 25 ° angular contact ball bearing should be adopted.
      ZYS precision angular contact ball bearings with high-speed angular contact bearings (standard series), super-speed angular contact ball bearings, high-speed sealed angular contact ball bearings and high-speed spindle bearings.
