OEM P0/P6 W209PP5/4509BA Square Bore Insert Bearing for Agricultural Machinery

XIAMEN GRANVILLE MECHANICAL & ELECTRICAL CO., LTD.
  • Aligning：Non-Aligning Bearing
  • Separated：Unseparated
  • Rows Number：Single
  • Load Direction：Radial Bearing
  • Material：Bearing Steel
  • d(iameter)：32.77

Base Info

  • Model NO.：W209PP5,4509BA
  • D：85
  • Bi：36.53
  • Be：30.18
  • Prescion：P0, P6, P5, P4
  • Type：Deep Groove Ball Bearing
  • Weight：0.8KGS
  • John Deere OE Ref.：4509BA
  • Transport Package：Industrial Packing, Single Box
  • Specification：Chrome Steel, Stainless Steel etc.
  • Trademark：TANN or Customized or Neutral
  • Origin：China
  • HS Code：8483200000

Description

Overview

Product Description

Detailed Photos

Product Parameters

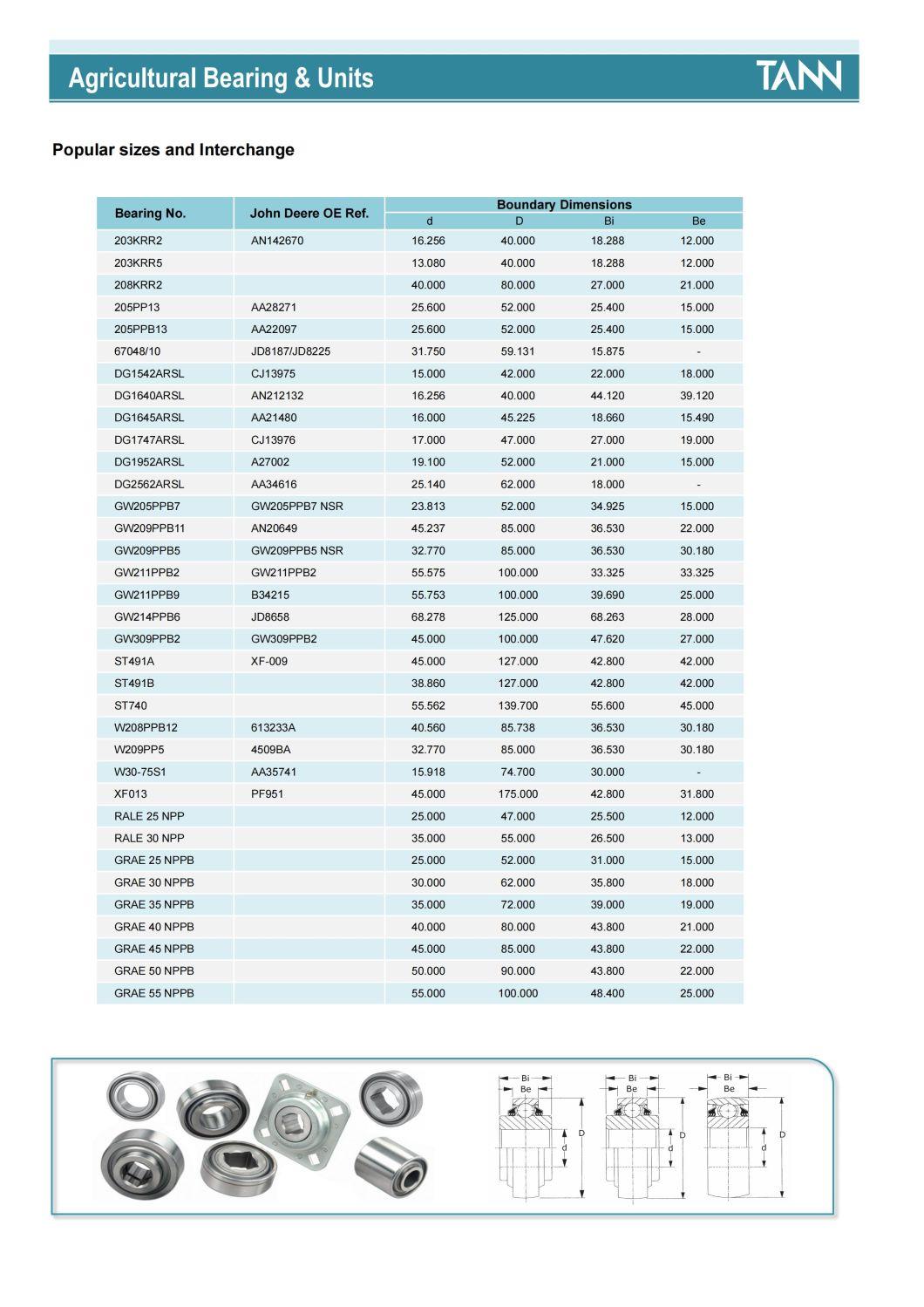

DimensionWeight dDBiBe W208PP529.9780.0036.5318.000.59W208PP626.1380.0036.5318.000.66W208PP829.9780.0036.5330.180.70W208PP926.1380.0036.5330.180.76W208PPB1122.9780.73836.5330.180.98W208PPB1222.9780.73836.5330.180.93W209PP532.7785.0036.5330.180.8W210PP429.9790.0030.1830.180.92W211PP338.87100.0033.3433.341.15W211PP538.87101.6044.4536.531.641W211PPB638.87103.5644.4536.531.52

More Choices

*Popular size FYI, contact for specific No. you are interested in.
OEM P0/P6 W209PP5/4509BA Square Bore Insert Bearing for Agricultural Machinery

Application

OEM P0/P6 W209PP5/4509BA Square Bore Insert Bearing for Agricultural MachineryOEM P0/P6 W209PP5/4509BA Square Bore Insert Bearing for Agricultural Machinery

Company Profile

OEM P0/P6 W209PP5/4509BA Square Bore Insert Bearing for Agricultural MachineryOEM P0/P6 W209PP5/4509BA Square Bore Insert Bearing for Agricultural MachineryQuality Warranty

Granville as a manufacturer of high quality products, guarantees compliance with the highest standards relative to the use of the best steel quality in the production process, the highest standards in the design of contact surfaces, as well as the most efficient packing and lubrication of parts. From material coming, quality control through all processes. Except interal test, goods to third party inspection if required. After the center of inspection and experiment being founded, effective methods of inspecting all kinds of raw materials are mastered and then the reliability of bearings is ensured. One of our main objectives is the continued improvement in the quality of our products and processes, in pursuit of which we obtained ISO certification 9001:2008 and TS16949.

Advantage Manufacturing Processes and Quality Control:
01 Heat Treatment
02 Centerless Grinding Machine 11200 (most advanced)
03 Automatic Production Lines for Raceway
04 Automatic Production Lines for Raceway
05 Ultrasonic Cleaning of Rings
06 Automatic Assembly
07 Ultrasonic Cleaning of Bearings
08 Automatic Greasing, Seals Pressing
09 Measurement of Bearing Vibration (Acceleration)
10 Measurement of Bearing Vibration (Speed)
11 Laser Marking
12 Automatic Packing
