Mi800 Cam Clutch Bearing with High Heat Treatment

Changzhou Suma Precision Machinery Co., Ltd.
  • Rolling Body：Sprag
  • The Number of Rows：Single
  • Outer Dimension：Large (200-430mm)
  • Material：Bearing Steel
  • Spherical：Non-Aligning Bearings
  • Load Direction：Radial Bearing

Base Info

  • Model NO.：MI800
  • Separated：Unseparated
  • Model Number：Mi800
  • Torque Capacity：17600nm
  • Inner Race Overrunning Speed：20r,Min
  • Max Indexing：300cycle,Min
  • Inner Diameter：110mm
  • Outer Diameter：250mm
  • Keyway：28X7(mm)
  • Width：158mm
  • Wight：46.5kg
  • OEM：Accept
  • Transport Package：Industry Packing
  • Specification：mg, ma, mi, mo, mr
  • Trademark：SUMA or OEM
  • Origin：Changzhou
  • HS Code：84836000
  • Production Capacity：10000PCS,Year

Description


Model
No.Torque
capacityDrag
TorqueMax Overrunning speedDimensionsWeightInner raceOuter raceABCDEN-mN-m  mmmmmmmmmmkgMG300A3730.2290080076.15/
76.2066.6860.3363.528.582MI300A--MO300A3600800MR300A8002900MG400A5420.3270080088.85/
88.9073.0366.6869.931.753MI400A--MO400A3600800MR400A8002700MG500A15930.52400750107.90/
107.9592.0885.7388.944.455MI500A--MO500A3000750MR500A7502400MG600A30510.91800700136.47/
136.53120.6592.0895.369.859MI600A--MO600A2400700MR600A7002100MG700A67791.81200400180.92/
180.98158.75123.83127.0101.6020MI700A--MO700A2000400MR700A4001750
Pictures

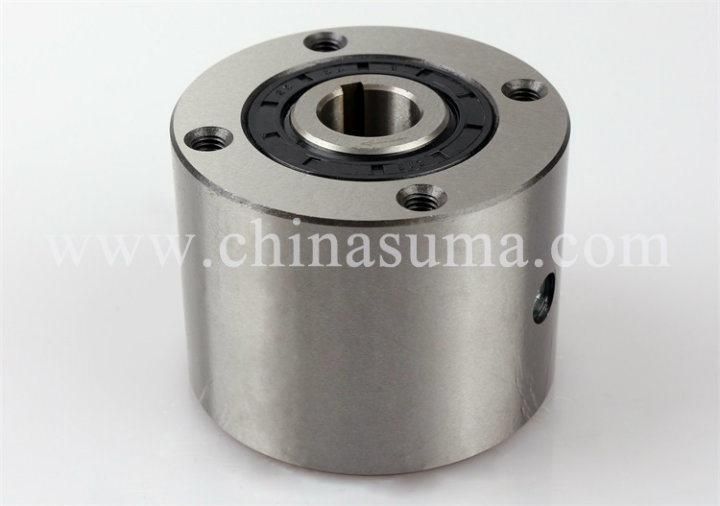

Mi800 Cam Clutch Bearing with High Heat Treatment

Package
Mi800 Cam Clutch Bearing with High Heat Treatment
Mi800 Cam Clutch Bearing with High Heat Treatment
