• Model NO.：51100
• Name：Thrust Ball Bearing
• Structure：Thrust
• Bore Size：10-200 mm
• Precision Rating：P0 P6 P5 P4 P2
• Outside Diameter：20 - 240 mm
• Seals Type：Open
• Bearing Precision：P0 P6 P5 P4 P2
• Transport Package：Sea Transportation
• Specification：10*20*9
• Trademark：OP
• Origin：China
• HS Code：8482104000
• Production Capacity：1000 Units,Week

Basic Info.

Model NO. 51100 Name Thrust Ball Bearing Structure Thrust Bore Size 10-200 mm Precision Rating P0 P6 P5 P4 P2 Outside Diameter 20 - 240 mm Seals Type Open Bearing Precision P0 P6 P5 P4 P2 Transport Package Sea Transportation Specification 10*20*9 Trademark OP Origin China HS Code 8482104000 Production Capacity 1000 Units/Week

Product Description

1. Available in two designs: single direction and double direction.Designs are available with spherical aligning seats or aligning seat washers.High quality steel-ultra clean steel to extend bearing life by up to 80%.High Grade Balls - Quiet and smooth operation even at high speed.Optional seating rings take initial misalignment.



NO.	d(mm)	D(mm)	H(mm)	Weight(kg)
51100	10	24	9	0.019
51101	12	26	9	0.021
51102	15	28	9	0.023
51103	17	30	9	0.024
51104	20	35	10	0.036
51105	25	42	11	0.056
51106	30	47	11	0.066
51107	35	52	12	0.083
51108	40	60	13	0.12
51109	45	65	14	0.15
51110	50	70	14	0.16
51111	55	78	16	0.24
51112	60	85	17	0.29
51113	65	90	18	0.324
51114	70	95	18	0.36
51115	75	100	19	0.392
51116	80	105	19	0.433
51117	85	110	19	0.46
51118	90	120	22	0.655
51120	100	135	25	1
51122	110	145	25	1.08
51124	120	155	25	1.2

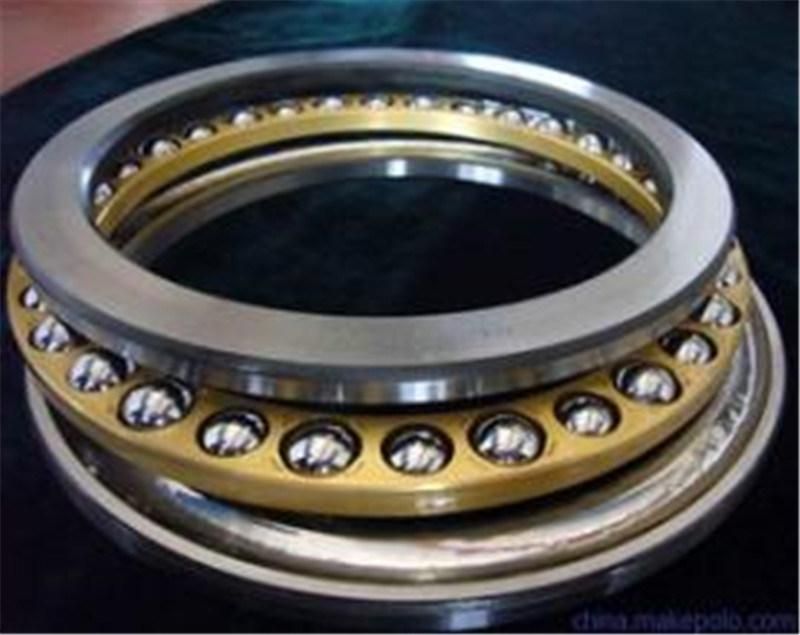

Product picture
