• Model NO.：WH14-2-84-BRH
• IP Class：IP65
• Static Axial Load：920kn
• Static Radial Laod：343kn
• Precision：0.15 Degree
• Corrosion Protection：C4
• Mechanical Efficiency：40%
• Color：Grey
• Transport Package：Standard Exporting Package
• Specification：WH14-2-84BRH
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：3000PCS,Month

Model

WH14-2

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Dual Worm

Material

42CrMo,50Mn

Output Torque

33.6KN.m

Tilting Moment Torque

102KN.m

Holding Torque

102K N.m

Static Axial Rating

920KN

Static Radial Rating

343KN

Gear Ratio

84:1

Efficiency

40%

Coresun Double-Worm Drive are generally used for heavy-duty equipment, such as road cleaning equipment, excavators, and large rotating platforms. Because the dual-axis drive is output by dual worms, the torque is maintained, the tipping torque is relatively large, the performance is more stable, and the service life will be longer

According to the variable speed drive of rotation drive form, can be divided into type rotary gear rotation drive and the worm and worm wheel drive, inherit the characteristics of gear transmission and worm gear and worm drive each, are the two kinds of rotation drive can be adapted to high speed and low speed applications, in terms of bearing capacity, performance is superior to the tooth worm gear and worm type, and when envelope worm drive is used, its bearing capacity, deformation resistance and transmission have further improve rigidity, but the worm gear and worm type rotary drive in efficiency is inferior to tooth rotation drive.

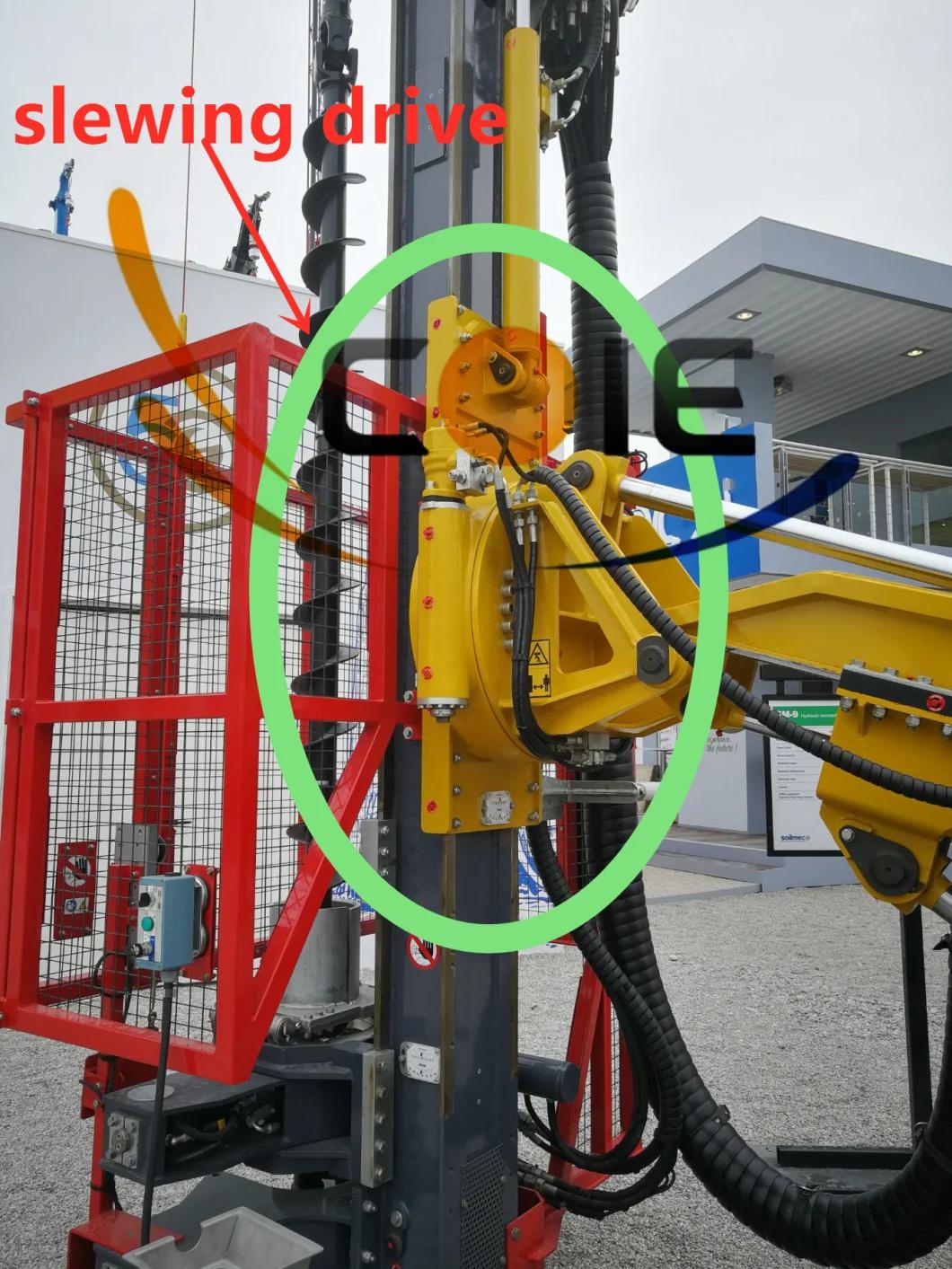

Production Photo and Application

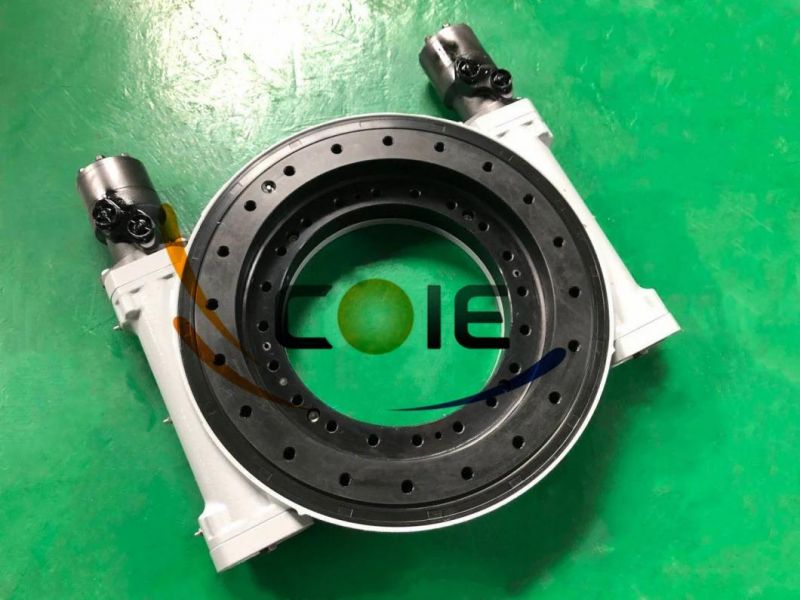

Dual worm model is designed for Timber Grab,Mounted Crane,and Aerial Working Platform
Compact design structure
Well transmission efficiency
High precison

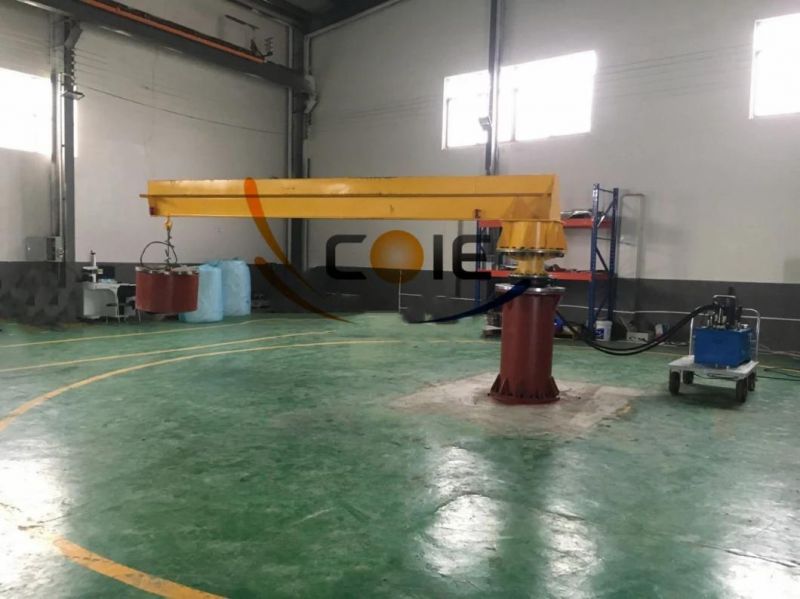

Coresun Drive makes the holding torque testing to ensure the quality and safety factor on our slewing drive and bearing.Quality is our foundation for the long-term development.
