• Lubricating Film Thickness：Thick Film Lubrication
• Transport Package：Carton or Wooden Case
• Specification：slider bearing
• Origin：Shandong, China
• Production Capacity：50000 Pieces, Month

Basic Info.

Lubricating Film Thickness Thick Film Lubrication Transport Package Carton or Wooden Case Specification slider bearing Origin Shandong, China Production Capacity 50000 Pieces/ Month

Product Description

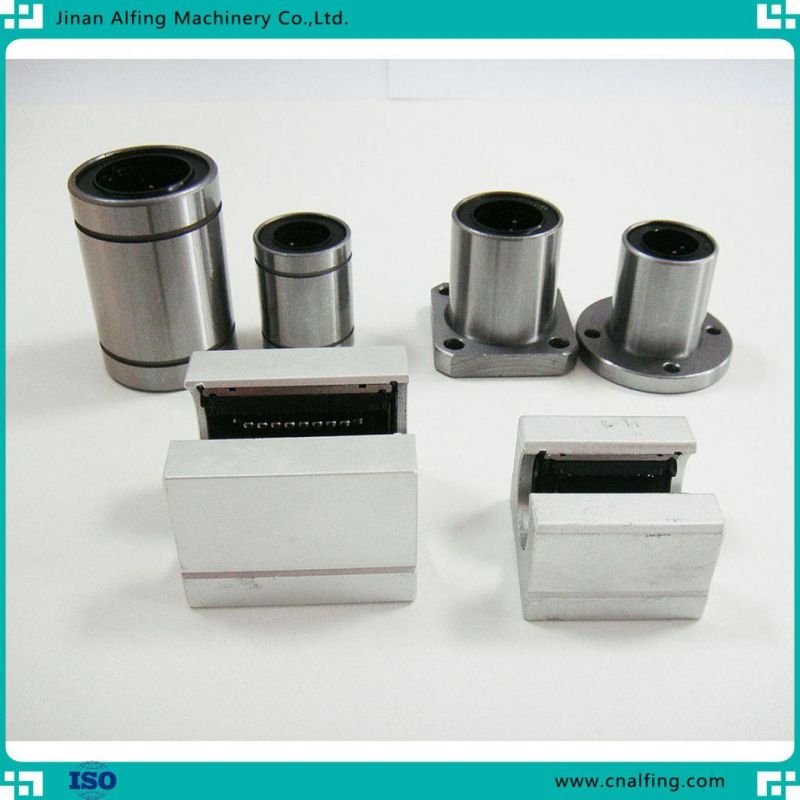

Slider bearings
CONTACT
Products introduction

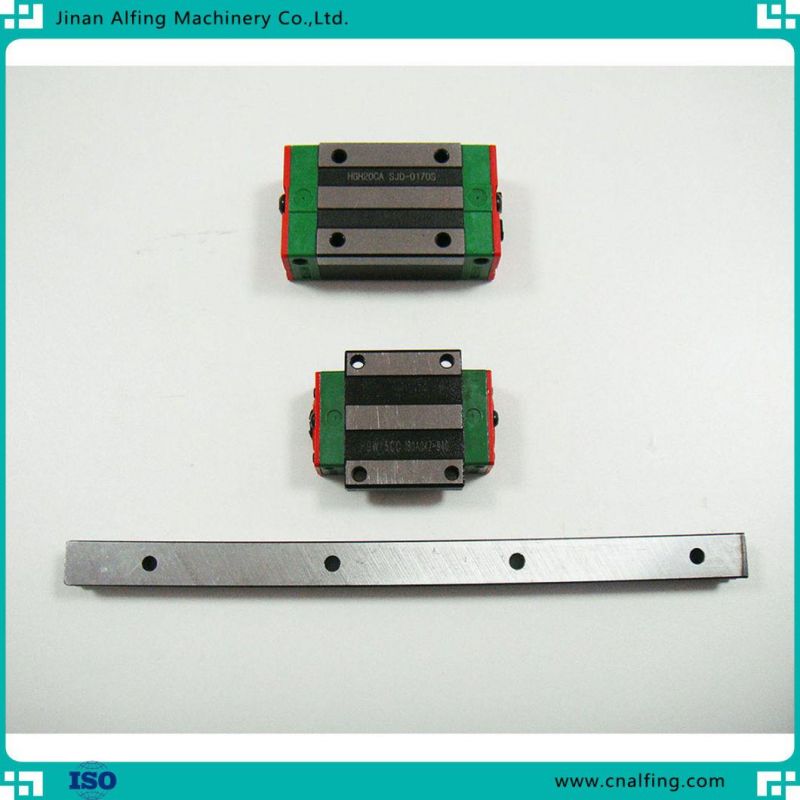

It mainly consists of a slider and a guide rail, and the slider is mainly applied to a sliding friction guide. Linear guides, also known as line rails, slide rails, linear guides, and linear slide rails, are used for linear reciprocating motions and can withstand a certain amount of torque to achieve high-precision linear motion under high load conditions.
The function of the linear guide motion is to support and guide the moving parts to make a reciprocating linear motion in a given direction. Depending on the nature of the friction, linear motion guides can be classified into sliding friction guides, rolling friction guides, elastic friction guides, and fluid friction guides. Linear bearings are mainly used in automation machinery, such as machine tools imported from Germany, bending machines, laser welding machines, etc. Of course, linear bearings and linear shafts are used together. Like a linear guide, it is mainly used on a mechanical structure with high precision requirements. The intermediate member is not used between the moving member and the fixed member of the linear guide, and the rolling steel ball is used.



Product Name	linear slider guide bearing
Precision:	P4, P2, P5, P6, P0
Guide Length:	Requirement
Material:	Bearing Steel
Application:	Automatic Machine
Performance:	High Running Performance
Type	Flange/square
Feature:	Anti-friction, Interchangeable
Linear Guideway Max Length Available:	4500mm
Width:	15mm - 35mm
OEM/ODM:	Customize Acceptable
Transport Package:	Carton / Wooden,according customers' requirement.
Structure:	Ball Raceway
Running Mode:	Slide
Loading Ability:	Regular and Heavy Duty
Rail Hardness:	HRC58-62
Nature:	Dustproof

The slider is a mold assembly that can slide in a direction perpendicular to the opening and closing mold or at an angle to the opening and closing mold direction during the mold opening operation of the mold. When the product structure is such that the mold can be demoulded without using the slider, the slider must be used. The material itself has the appropriate hardness, wear resistance, and is sufficient to withstand the friction of motion. The cavity portion or core portion of the slider should have the same hardness as the rest of the cavity core.
