• Model NO.：FCD80112410
• Separated：Separated
• Application：Rolling Mill, Mining Machinery
• Transport Package：Seaworthy Wooden Case
• Specification：400*560*410mm
• Trademark：ZYS
• Origin：China
• HS Code：8482200000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. FCD80112410 Separated Separated Application Rolling Mill, Mining Machinery Transport Package Seaworthy Wooden Case Specification 400*560*410mm Trademark ZYS Origin China HS Code 8482200000 Production Capacity 50000 PCS/Year

Product Description

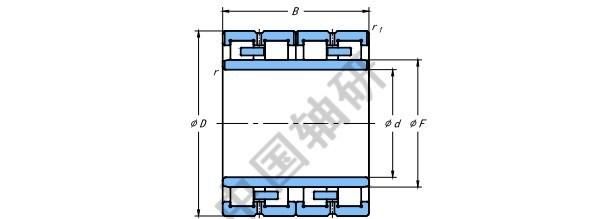

Four row cylindrical roller bearing


Four row cylindrical roller bearings are the one of the main bearings for rolling mills. They are compact structures and high stiffness, and can carry high radial loads but not axial load. Because of inner rings with no ribs, inner and outer ring subassembly ( with full set of rollers and cage) can be mounted respectively. Cleaning inspecting and dismounting are very convenient.



Four row cylindrical roller bearings are especially applied to rolling mills required high speed and precision, for
example, wire mills, bar and shape mills, cold or hot sheet mills and cogging mills.

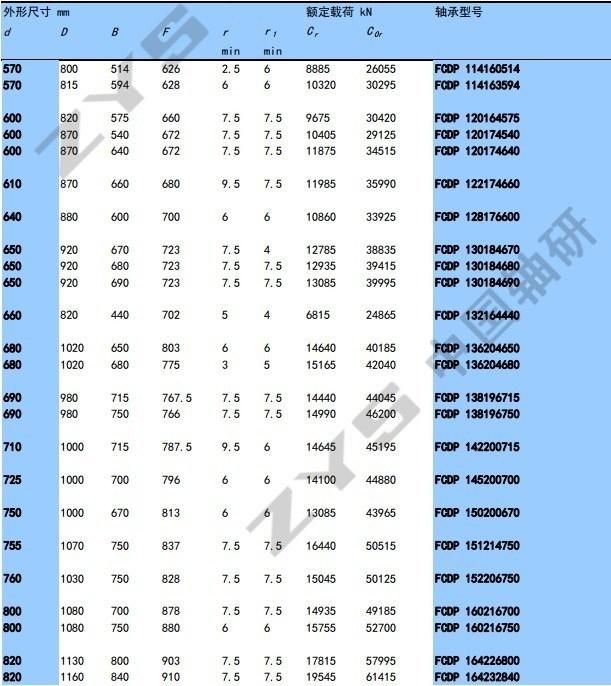

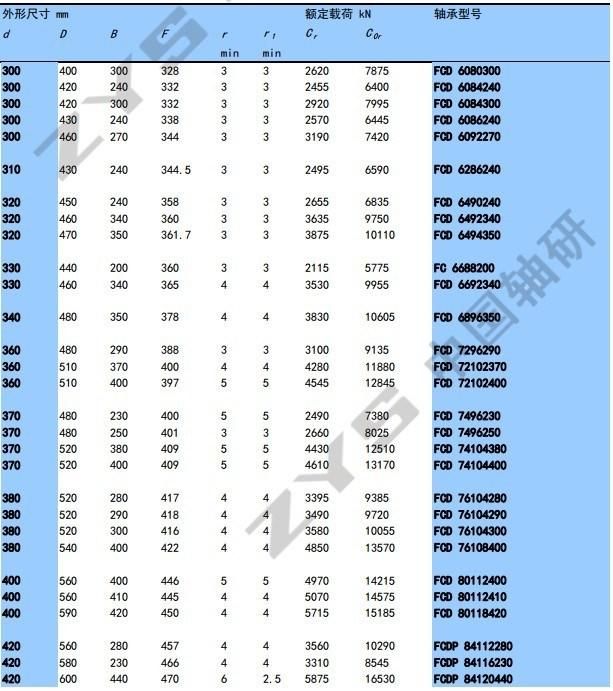

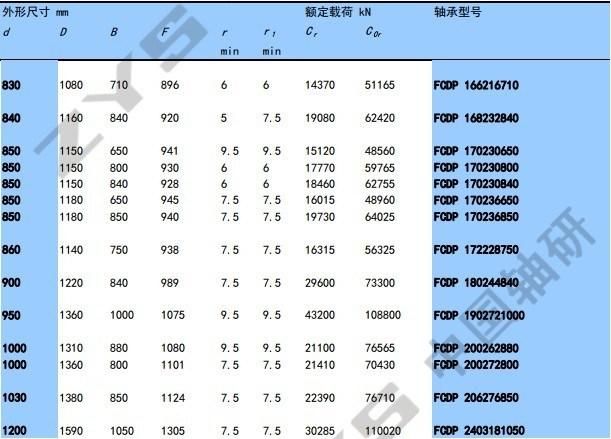

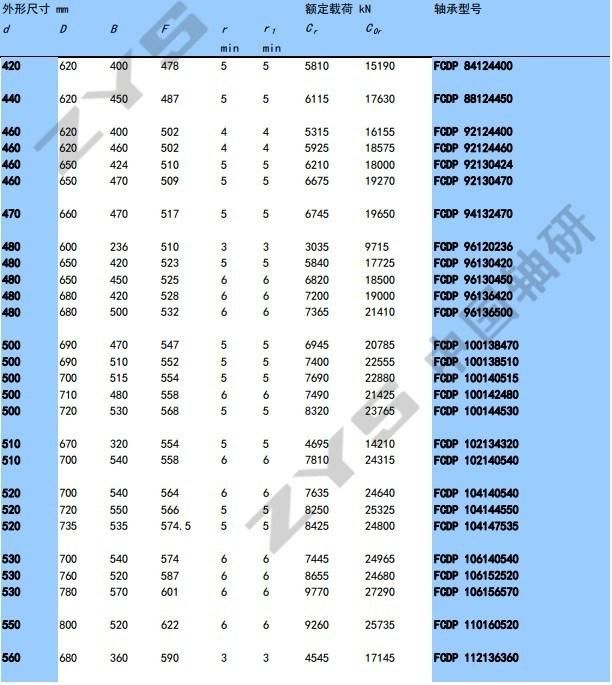

Dimension

Inner bore diameter ≥ 80mm

Outer bore diameter ≤1500mm

Precision grade: P0,P6,P5

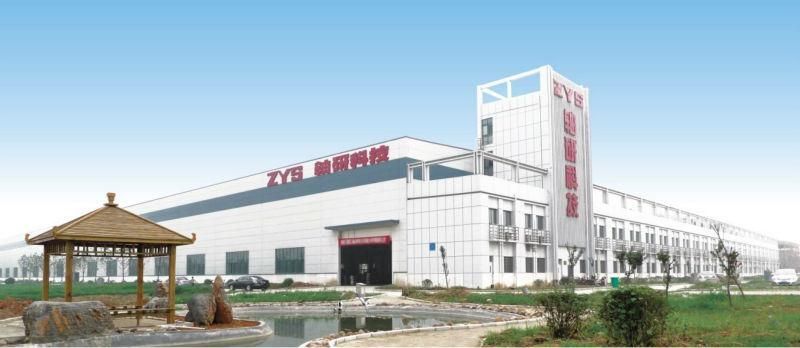

ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. Was established in 2001. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.


ZYS Advantage
ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments, but also has strong strength of manufacturing, inspecting and testing the high-precision and high-reliability bearings and relevant spare parts. In the meantime, it always keeps a leading position in bearing basic theory, lubrication technology, design, material, test, information criterion and other aspects.


Glory
Top 200 most promising companies of China in Forbes
Top 500 in China Machinery Industry
Excellent Enterprise with China Well-know Trademark
High-performance Bearings Laboratory
State Quality Supervision and Testing Center for Bearing
ISO/TC4 China Secretariat
The Research Center for High-speed Precision Bearing Engineering in Machinery Industry...


We would like to and ready to do business with any company from all over the world. If any of ZYS products interests you or if you have interests in ZYS company, please don't hesitate to contact with us, we would like to give you ZYS best quality service any day any time!
