• Model NO.：231.21.0975.013
• Type：External Gear
• Warranty Period：18 Months
• Precision：P0, P6, P5, P4
• Certificate：ISO9001:2008
• Outer Diameter：1046.4mm
• Bore Diameter：835mm
• Height：56mm
• Weight：69.6kg
• Production Experience：Since Year 1993
• Delivery Time：15-30 Days
• Transport Package：Wooden Box
• Specification：ISO9001: 2008
• Trademark：LYHY
• Origin：China
• HS Code：8482109000
• Production Capacity：200PCS,Month

Basic Info.

Model NO. 231.21.0975.013 Type External Gear Warranty Period 18 Months Precision P0, P6, P5, P4 Certificate ISO9001:2008 Outer Diameter 1046.4mm Bore Diameter 835mm Height 56mm Weight 69.6kg Production Experience Since Year 1993 Delivery Time 15-30 Days Transport Package Wooden Box Specification ISO9001: 2008 Trademark LYHY Origin China HS Code 8482109000 Production Capacity 200PCS/Month

Product Description

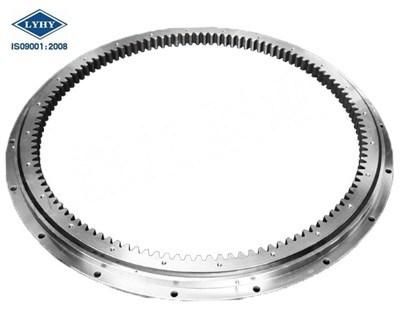

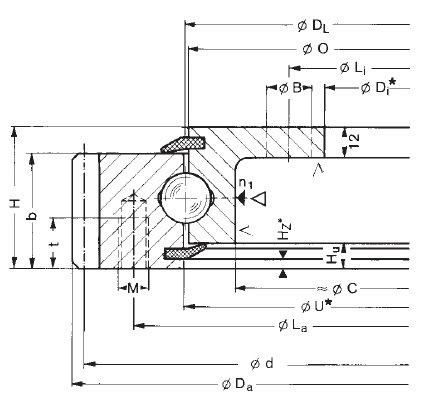

Please see details for  slewing ring bearing
231.21.0975.013 (Type 21/1050.1)
if you need more details, please feel free to contact us for designing and producing

Why choose LYHY slewing bearings
A pioneer in slewing bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
SO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slewing bearing
 Single Row Four Point Contact Ball Slewing Bearing--Bearing ungearedLYHY Slewing Bearing Types

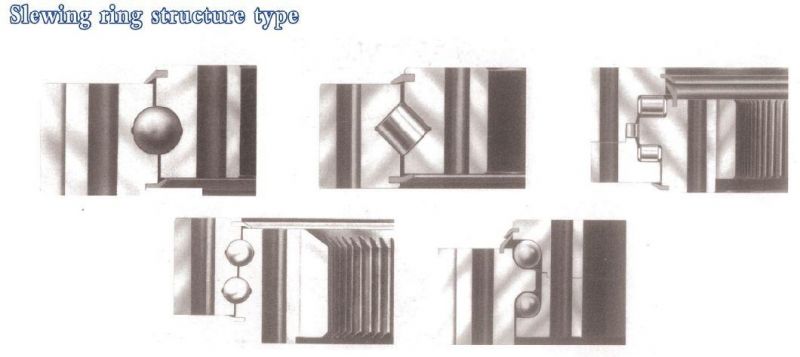

LYHY slewing bearings can be divided into the following types as per  their structures:
single row four point contact ball slewing bearing,
single row cross roller slewing bearing,
double row different ball diameter slewing bearing,
three row cylindrical roller slewing bearing and roller/ball combination slewing bearing.
And all these types of slewing bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.

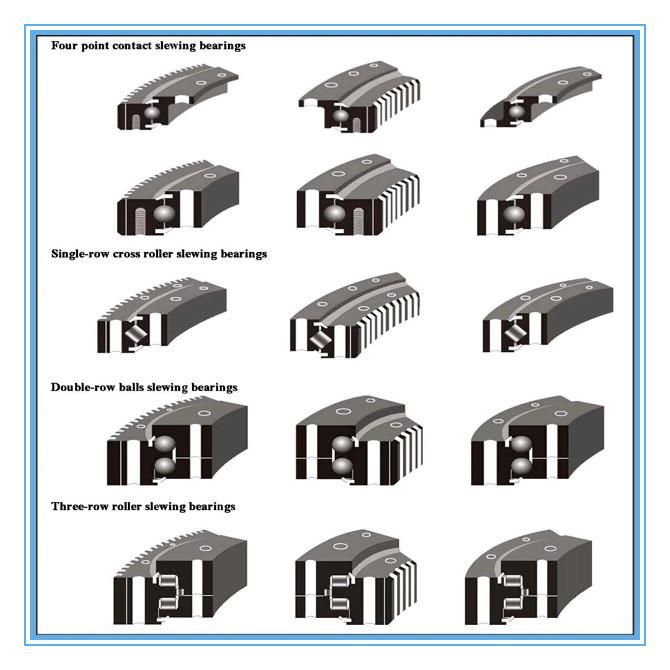

Detailed description of these types slewing bearings

Single row four point contact ball slewing bearings
     This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
     This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
     This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
     This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
     This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.

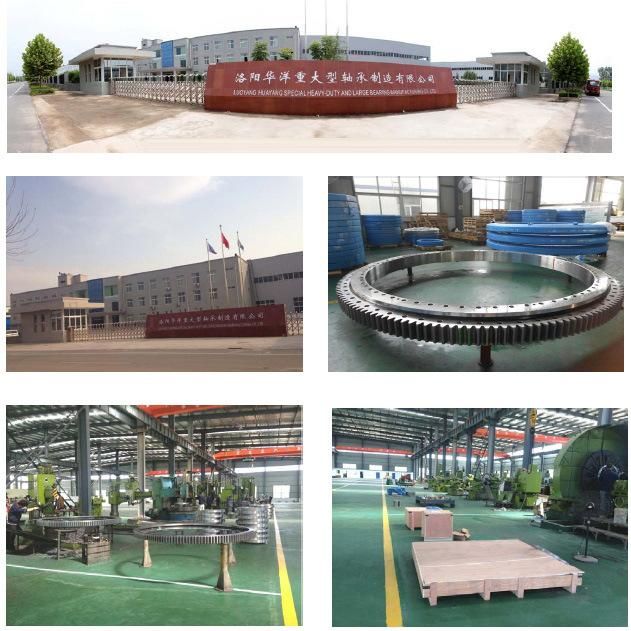

About LYHY bearings
1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia

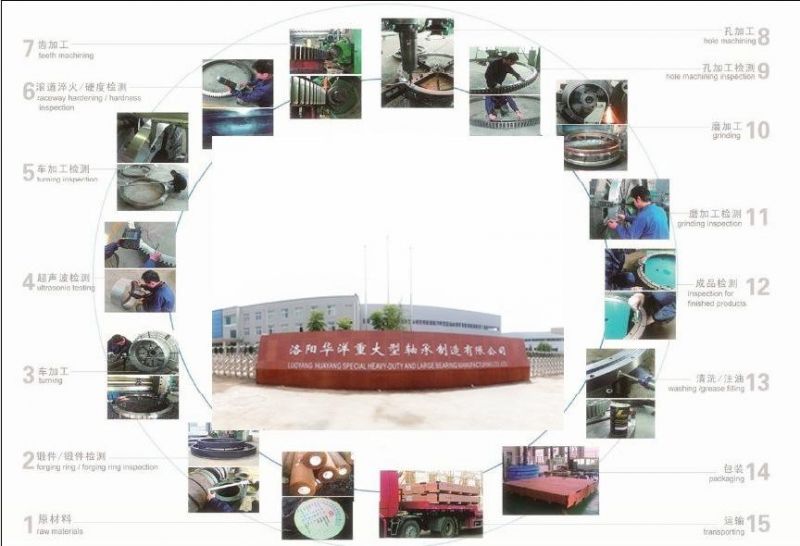

Production Process of LYHY slewing bearings

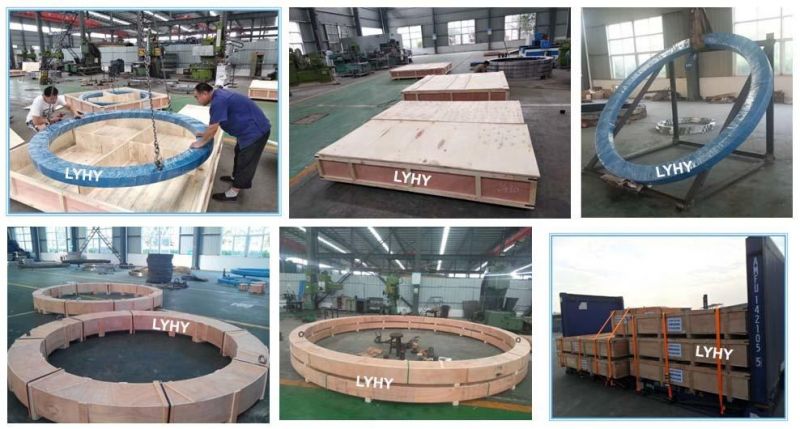

LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers  demand to be packed;

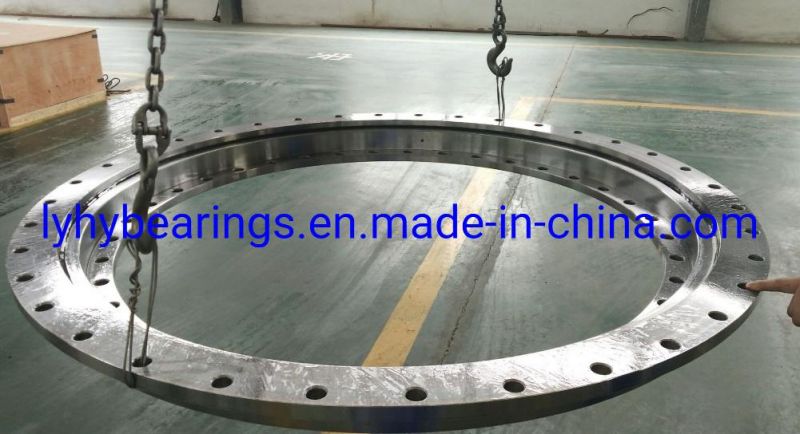

Bearing ungeared
230.20.0400.013 (Type 21/520.0)
230.20.0500.013 (Type 21/650.0)
230.20.0600.013 (Type 21/750.0)
230.20.0700.013 (Type 21/850.0)
230.20.0800.013 (Type 21/950.0)
230.20.0900.013 (Type 21/1050.0)
230.20.1000.013 (Type 21/1200.0)

230.20.0400.503 (Type 21/520.0)
230.20.0500.503 (Type 21/650.0)
230.20.0600.503 (Type 21/750.0)
230.20.0700.503 (Type 21/850.0)
230.20.0800.503 (Type 21/950.0)
230.20.0900.503 (Type 21/1050.0)
230.20.1000.503 (Type 21/1200.0)

230.21.0475.013 (Type 21/520.0)
230.21.0575.013 (Type 21/650.0)
230.21.0675.013 (Type 21/750.0)
230.21.0775.013 (Type 21/850.0)
230.21.0875.013 (Type 21/950.0)
230.21.0975.013 (Type 21/1050.0)
230.21.1075.013 (Type 21/1200.0)

280.30.0900.013 (Type 110/1100.0)
280.30.1000.013 (Type 110/1200.0)
280.30.1100.013 (Type 110/1300.0)
280.30.1200.013 (Type 110/1400.0)
280.30.1300.013 (Type 110/1500.0)
280.30.1400.013 (Type 110/1600.0)

280.30.0975.013 (Type 110/1100.0)
280.30.1075.013 (Type 110/1200.0)
280.30.1175.013 (Type 110/1300.0)
280.30.1275.013 (Type 110/1400.0)
280.30.1375.013 (Type 110/1500.0)
280.30.1475.013 (Type 110/1600.0)

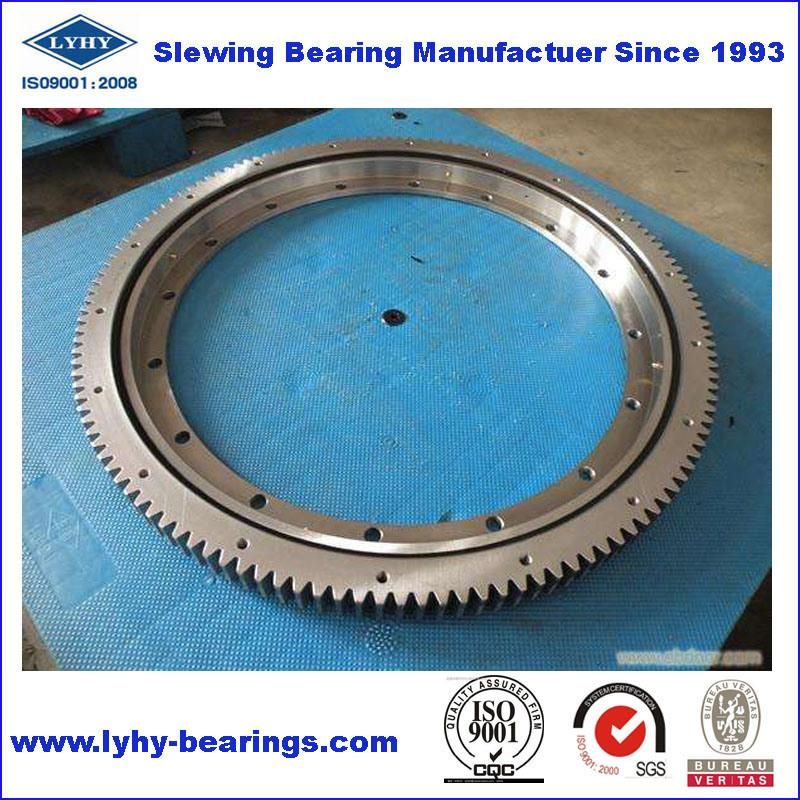

Bearing with external gear
231.20.0400.013 (Type 21/520.1)
231.20.0500.013 (Type 21/650.1)
231.20.0600.013 (Type 21/750.1)
231.20.0700.013 (Type 21/850.1)
231.20.0800.013 (Type 21/950.1)
231.20.0900.013 (Type 21/1050.1)
231.20.1000.013 (Type 21/1200.1)

231.20.0400.503 (Type 21/520.1)
231.20.0500.503 (Type 21/650.1)
231.20.0600.503 (Type 21/750.1)
231.20.0700.503 (Type 21/850.1)
231.20.0800.503 (Type 21/950.1)
231.20.0900.503 (Type 21/1050.1)
231.20.1000.503 (Type 21/1200.1)

231.21.0475.013 (Type 21/520.1)
231.21.0575.013 (Type 21/650.1)
231.21.0675.013 (Type 21/750.1)
231.21.0775.013 (Type 21/850.1)
231.21.0875.013 (Type 21/950.1)
231.21.0975.013 (Type 21/1050.1)
231.21.1075.013 (Type 21/1200.1)

281.30.0900.013 (Type 110/1100.1)
281.30.1000.013 (Type 110/1200.1)
281.30.1100.013 (Type 110/1300.1)
281.30.1200.013 (Type 110/1400.1)
281.30.1300.013 (Type 110/1500.1)
281.30.1400.013 (Type 110/1600.1)

281.30.0975.013 (Type 110/1100.1)
281.30.1075.013 (Type 110/1200.1)
281.30.1175.013 (Type 110/1300.1)
281.30.1275.013 (Type 110/1400.1)
281.30.1375.013 (Type 110/1500.1)
281.30.1475.013 (Type 110/1600.1)

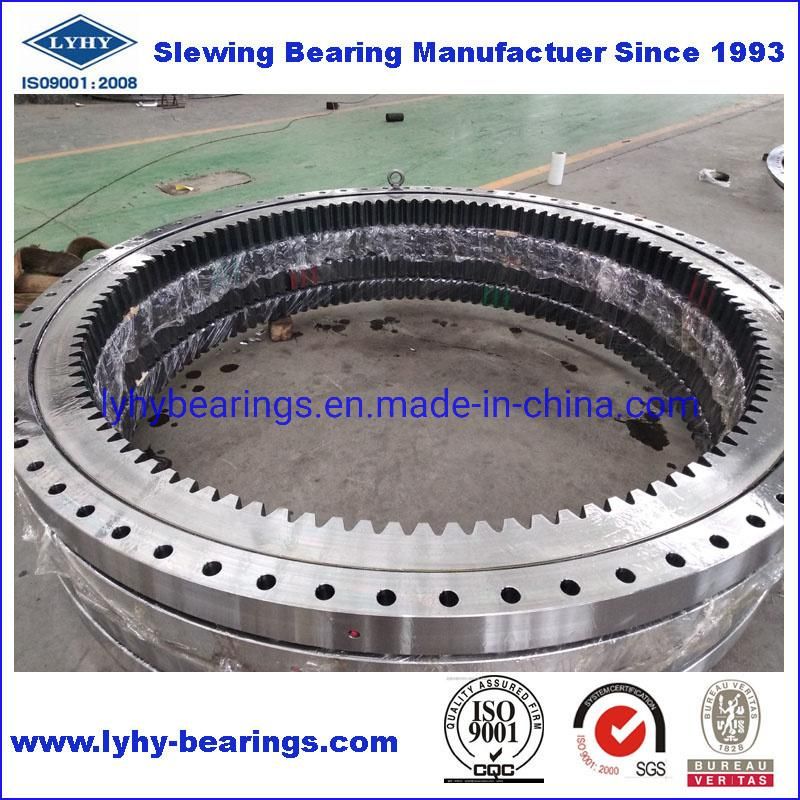

Bearing with internal gear
232.20.0400.013 (Type 21/520.2)
232.20.0500.013 (Type 21/650.2)
232.20.0600.013 (Type 21/750.2)
232.20.0700.013 (Type 21/850.2)
232.20.0800.013 (Type 21/950.2)
232.20.0900.013 (Type 21/1050.2)
232.20.1000.013 (Type 21/1200.2)

232.20.0400.503 (Type 21/520.2)
232.20.0500.503 (Type 21/650.2)
232.20.0600.503 (Type 21/750.2)
232.20.0700.503 (Type 21/850.2)
232.20.0800.503 (Type 21/950.2)
232.20.0900.503 (Type 21/1050.2)
232.20.1000.503 (Type 21/1200.2)

232.21.0475.013 (Type 21/520.2)
232.21.0575.013 (Type 21/650.2)
232.21.0675.013 (Type 21/750.2)
232.21.0775.013 (Type 21/850.2)
232.21.0875.013 (Type 21/950.2)
232.21.0975.013 (Type 21/1050.2)
232.21.1075.013 (Type 21/1200.2)

282.30.0900.013 (Type 110/1100.2)
282.30.1000.013 (Type 110/1200.2)
282.30.1100.013 (Type 110/1300.2)
282.30.1200.013 (Type 110/1400.2)
282.30.1300.013 (Type 110/1500.2)
282.30.1400.013 (Type 110/1600.2)

282.30.0975.013 (Type 110/1100.2)
282.30.1075.013 (Type 110/1200.2)
282.30.1175.013 (Type 110/1300.2)
282.30.1275.013 (Type 110/1400.2)
282.30.1375.013 (Type 110/1500.2)
282.30.1475.013 (Type 110/1600.2)
