Nu-N-NF-Nj-Nup 406 Nu406 32406 N406 NF406 Nj406 Nup406 Cylindrical Roller Bearing
Nanjing JPG Bearing & Equipment Co., Ltd.- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：Small and Medium-Sized (60-115mm)
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
Base Info
- Model NO.：Nu406 32406 N406 Nf406 Nj406 Nup406
- Separated：Separated
- Description：Cylindrical Roller Bearing
- Row：Singel or Double
- Sample：Available
- Non Standard：Accpetable
- Service：OEM
- Precision：P0,P6,P5
- Quality：Guaranteed
- Stock：Rich
- Delivery：Timely
- Transport Package：as Customer′s Request
- Specification：depends on order
- Trademark：JPG or OEM or neutral marking or no marking
- Origin：Jiangsu Nanjing
- HS Code：84821020
- Production Capacity：500, 000,Month
Description
Overview
Product Description
Cylindrical Roller Berings
In bearings of Cylindrical Roller Berings the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.
Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools. Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings.
There are different types designated as NU, NJ, NUP, N, NF (for single-row cylindrical roller bearings), NNU, and NN (for double-row cylindrical roller bearings depending on the design or absence of side ribs). The outer and inner rings of all types are separable .
NU406 32406 N406 NF406 NJ406 NUP406
30 90 23mm 0.73kg
Main items
Bearing NO.(mm) Bearing No. (mm) ITEM NO. OLD ITEM d D B Item no. Old item d D B N202 2202 15 35 11 NUP205 92205 25 52 15 NF202 12202 15 35 11 RN205 502205 25 - 15 NU202 32202 15 35 11 RNU205 292205 - 52 15 NJ202 42202 15 35 11 N2205 2505 25 52 18 RN202 502202 15 - 11 N2205 2505 25 52 18 RNU202 292202 - 35 11 NUP2205NV E192505K 25 52 18 N203 2203 17 40 12 LRN605/YA 922205 - 52 15 NF203 12203 17 40 12 NU203 32203 17 40 12 N305 2305 25 62 17 NJ203 42203 17 40 12 NU305 32305 25 62 17 RN203 502203 17 - 12 NJ305 42305 25 62 17 RNU203 292203 - 40 12 NUP305 92305 25 62 17 N204 2204 20 47 14 RN305 502305 25 - 17 NF204 12204 20 47 14 NF305 12305 25 62 17 NU204 32204 20 47 14 RNU305 292305 - 62 17 NJ204 42204 20 47 14 NCL2305 102605 25 62 24 NUP204 92204 20 47 14 RN204 502204 20 - 14 N206 2206 30 62 16 RNU204 292204 - 47 14 NF206 12206 30 62 16 RN-V604ENV/P6 E392704K - 55 20 NU206 32206 30 62 16 NJ206 42206 30 62 16 N304 2304 20 52 15 NUP206 92206 30 62 16 NF304 12304 20 52 15 RN206 502206 30 - 16 NU304 32304 20 52 15 RUN206 292206 - 62 16 NJ304 42304 20 52 15 NCL206 102206 30 62 16 NUP304 92304 20 52 15 RN304 502304 20 - 15 N306 2306 30 72 19 RNU304 292304 - 52 15 NF306 12306 30 72 19 NU306 32306 30 72 19 N205 2205 25 52 15 NJ306 42306 30 72 19 NF205 12205 25 52 15 NUP306 92306 30 72 19 NU205 32205 25 52 15 RN306 502306 30 - 19 NJ205 42205 25 52 15
Shaft diameter (mm) Bearing Designation Boundary Dimensions (mm) Basic Load Ratings (N) Limiting Speeds (rpm) Weight (Kg) Current Designation Original Designation d D B rsmin r1smin Cr Dynamic Cor Static Grease Oil 16 SZ-4101 16 44 8.3 15700 18000 0.07011 17 N203 2203 17 40 12 0.6 0.3 11400 9100 16000 19000 0.07800 NJ203 42203 17 40 12 0.7 0.3 11400 9100 16000 19000 0.06900 NJ203ETN1 17 40 12 0.6 0.6 16900 13800 16000 19000 0.07158 NU203 32203 17 40 12 0.6 0.3 11400 9100 16000 19000 0.07000 NU203ETN1 17 40 12 0.6 0.3 16900 13800 16000 19000 0.06654 NJ2203E 17 40 16 0.6 0.3 22800 20300 13800 16400 0.09200 20 N204 2204 20 47 14 1 0.6 15800 13100 13800 16400 0.13300 NF204 12204 20 47 14 1 0.6 15800 13100 13800 16400 0.11000 NJ204 42204 20 47 14 1.1 0.7 17000 14400 13800 16400 0.14000 NU204 32204 20 47 14 1 0.6 15800 13100 13800 16400 0.13500 NU204/C3 20 47 14 1 0.6 14400 13100 13800 16400 0.10670 N304 2304 20 52 15 1.1 0.6 21800 17700 11400 13800 0.14470 NJ304 42304 20 52 15 1.1 0.6 21800 17700 11400 13800 0.15750 NU304 32304 20 52 15 1.1 0.6 21800 17700 11400 13800 0.15190 NUP304ETN1 20 52 15 1.1 0.6 31500 26800 10600 13100 0.15582 NJ2304ETN1 20 52 21 1.1 0.6 42000 38700 10000 13000 0.21267 25 N205 2205 25 52 15 1 0.6 17000 14900 11400 13800 0.13280 NF205 12205 25 52 15 1 0.6 17000 14900 11400 13800 0.13630 NJ205 42205 25 52 15 1 0.6 17000 14900 11400 13800 0.14840 NJ205E 42205E 25 52 15 1 0.6 29900 28400 10600 13100 0.13400 NJ205ETN1 25 52 15 1 0.6 29900 28400 10600 13100 0.13510 NU205 32205 25 52 15 1 0.6 17000 14900 11400 13800 0.13300 NU205/C3 25 52 15 1 0.6 15400 14900 11400 13800 0.13300 NU205E 32205E 25 52 15 1 0.6 29900 28400 10600 13100 0.13013 NU205ETN1 25 52 15 1 0.6 29900 28400 10600 13100 0.13107 NU205L 25 52 15 1 0.6 20300 18900 10600 13100 0.13774 NUP205 92205 25 52 15 1 0.6 17000 14900 11400 13800 0.14950 NCL205 102205 25 52 15 1 0.6 24600 24300 10600 13100 0.14500 N2205 2505 25 52 18 1.1 0.6 24100 23300 10600 13100 0.18700 NJ2205 C0G42505 25 52 18 1 1 24100 23300 10600 13100 0.17000 NU2205 32505 25 52 18 1.1 0.6 24100 23300 10600 13100 0.16530 NU2205/C3 25 52 18 1 0.6 21400 22800 10600 13100 0.16530 NU2205EV 25 52 18 1 0.6 41400 43300 9200 11400 0.16520 N305 2305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.23430 N305ENTN1/C3 25 62 17 1.1 0.5 41500 37400 9200 11400 0.23340 NF305 12305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.24330 NJ305 42305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.24580 NJ305/C3 C3G42305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.24580 NJ305E 42305E 25 62 17 1.1 1.1 41500 37400 9200 11400 0.27100 NJ305ETN1 25 62 17 1.1 1.1 41500 37400 8900 10500 0.24364 NU305 32305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.23970 NUP305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.25551 NUP305E 25 62 17 1.1 1.1 41500 37400 8900 10500 0.28505 NUP305N C0G192305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.26300 NCL305 102305 25 62 17 1.1 1.1 39500 37800 8900 10500 0.24600 NU2305E 25 62 24 1.1 1.1 57000 56100 2250 4500 0.36939 NJ2305E 25 62 24 1.1 1.1 57000 56100 7800 9200 0.37739 NJ2305EV/C4 C4G532605E 25 62 24 1.1 1.1 66300 69700 7800 9200 0.36920 NJ2305VH 25 62 24 1.1 1.1 63000 57000 2250 4500 0.36950 NUP2305E 25 62 24 1.1 1.1 57000 56100 7800 9200 0.37657 NCL2305 102605 25 62 24 1.5 1.1 57700 61400 7800 9200 0.35800 30 NUP44494 30 61.93 23.8 1.1 1.1 63300 75500 2500 5000 0.34000 N206 2206 30 62 16 1 0.6 23900 22200 9400 11300 0.20380 N206E 2206E 30 62 16 1 0.6 36800 34400 8900 10500 0.24000 NJ206 42206 30 62 16 1 0.6 23900 22200 9400 11300 0.23380 NJ206E C0G42206E 30 62 16 1 0.6 39100 37300 8900 10500 0.23080 NJ206ETN1 30 62 16 1 0.6 39100 37300 8900 10500 0.23080 NU206 32206 30 62 16 1 0.6 23900 22200 9400 11300 0.21130 NU206E 32206E 30 62 16 1 0.6 39100 37300 8900 10500 0.22310 NUP206E 92206E 30 62 16 1 0.6 39100 37300 8900 10500 0.23540 NUP206E/C4 30 62 16 1 1 39100 37300 8900 10500 0.23510 NCL206 102206 30 62 16 1 0.6 33800 35100 8900 10500 0.22400 NJ2206ETN1 30 62 20 1.0 0.6 48900 49800 8900 10500 0.25792 NJ2206E 30 62 20 1.0 0.6 48900 49800 8900 10500 0.34970 NJ2206E.TVP 30 62 20 1 1 48900 49800 2500 5000 0.25792 N306 2306 30 72 19 1.1 1.1 35900 31900 7800 9200 0.34480 NJ306 42306 30 72 19 1.1 1.1 35900 31900 7800 9200 0.35240 NJ306E 30 72 19 1.1 1.1 53200 50200 7000 8500 0.40082 NJ306E/C3 30 72 19 1.1 1.1 53200 50200 7000 8500 0.40082 NU306 32306K 30 72 19 1.1 1.1 35900 31900 7800 9200 0.34590 NU306E 30 72 19 1.1 1.1 53200 50200 7800 9200 0.39282 NU306MN/P63 30 72 19 1.1 1.1 35100 38600 7800 9200 0.38100 NUP306 92306 30 72 19 1.1 1.1 35900 31900 7800 9200 0.36950 NFP306 22306K 30 72 19 1.1 1.1 35900 31900 7800 9200 0.37000 RO-694 30 80 23 1.1 1 75400 81100 7800 9200 0.60065 32 NCL6/32V 32 62 18 1.1 0.6 53400 56200 7000 8500 0.23670 NCL6/32V/P6 32 62 18 1.1 0.6 53400 56200 7000 8500 0.23670 NUP45622 32 75 20 1.1 1.1 50000 44300 0.41125 35 F-45226 35 62 19 1 0.6 50000 53000 2750 5500 0.21513 R356219 35 62 19 1 0.6 50000 53000 2750 5500 0.21513 N207 2207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.29400 NF207 C0G12207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.30150 NJ207 42207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.29950 NJ207E 35 72 17 1.1 0.6 50200 50100 7800 9200 0.32630 NU207 32207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.29130 NUP207 92207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.32451 NU2207E 35 72 23 1.1 0.6 61600 65200 2200 4300 0.41860 NJ2207E 35 72 23 1.1 0.6 61600 65200 6600 7900 0.42960 NUP2207E 92507E 35 72 23 1.1 0.6 61600 65200 6600 7900 0.44440 N307 2307K 35 80 21 1.5 1.1 46400 43000 7700 9200 0.45760 NF307 12307K 35 80 21 1.5 1.1 46400 43000 7700 9200 0.47360 NJ307 42307 35 80 21 1.5 1.1 46400 43000 7700 9200 0.48060 NJ307/C3 C3G42307 35 80 21 1.5 1.1 46400 43000 1700 3400 0.48365 NJ307E C0G42307EK 35 80 21 1.8 1.3 66500 65300 6600 7900 0.48720 NJ307EV/C4YA C4G532307EK 35 80 21 1.5 1.1 78400 81000 6100 7400 0.50150 C3G42307EK 35 80 21 1.8 1.3 66500 65300 7700 9200 0.48720 NU307 32307 35 80 21 1.5 1.1 46400 43000 7700 9200 0.46760 NU307EV1 35 80 21 1.5 1.1 71000 71000 6600 7900 0.51243 NUP307E 92307E 35 80 21 1.5 1.1 66500 65300 6600 7900 0.52340 NUP307EN 35 80 21 1.5 1.1 66500 65300 6600 7900 0.53710 NUP307EV 35 80 21 1.5 1.1 77500 79800 6600 7900 0.51390 NUP307EV/C3 35 80 21 1.5 1.1 77500 79800 6600 7900 0.51390 510148 35 80 23 1.1 0.6 65750 77600 6600 7900 0.57100 NJ2307E 35 80 31 1.5 1.1 93000 100500 6600 7900 0.78400 NU2307EV4 35 80 31 1.5 1.1 99000 109000 6600 7900 0.76425 NUP2207X1V/C9YB 35 90 23 1.1 0.6 89600 93600 0.79900 40 N208 2208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.37080 NF208 12208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.38380 NJ208 42208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.39730 NU208 32208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.37580 NUP208 92208 40 80 18 1.1 0.6 43700 42900 7300 8700 0.39850 NUP208/P6 E92208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.39860 NU2208E 40 80 23 1.1 1.1 72300 77600 2000 3800 0.51782 NJ2208E 42508E 40 80 23 1.1 1.1 72300 77600 6600 7900 0.53082 NJ2208E.TVP3.C3 40 80 23 1.1 1.1 70600 75200 2000 3800 0.48967 NJ2208EV 40 80 23 1.1 1.1 84700 95100 6100 7400 0.51160 N308 2308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.63650 NF308 12308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.66990 NF308M/P6 E12308H 40 90 23 1.5 1.5 58600 56900 6600 7900 0.71990 NJ308 42308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.67930 NJ308ETN1 40 90 23 1.5 1.5 83200 81500 1500 3000 0.66350 NJ308/C3 40 90 23 1.5 1.5 58600 56900 1500 3000 0.67930 NU308 32308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.66610 NUP308E 92308E 40 90 23 1.5 1.5 82200 80300 6100 7400 0.69600 NUP308N 192308 40 90 23 1.5 1.5 58600 56900 6600 7900 0.72078 NUP308EN 192308E 40 90 23 1.5 1.5 82200 80300 6100 7400 0.72540 NUP308ENV 40 90 23 1.5 1.5 97200 101000 5900 7000 0.70250 NJ2308E 40 90 33 1.5 1.5 113200 121100 5900 7000 1.03700 NJ2308E.TVP3 40 90 33 1.5 1.5 121000 140700 1500 3000 0.95869 NUP2308E 40 90 33 1.5 1.5 121000 140700 1500 3000 1.06100 45 N209 2209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.41880 NF209 12209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.43670 NF209/C3 45 85 19 1.1 1.1 45900 46900 7100 8500 0.43670 NF209E 45 85 19 1.1 1.1 63000 66400 6600 7900 0.47644 NJ209 42209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.44590 NJ209E 45 85 19 1.1 1.1 63000 66400 6600 7900 0.42995 NJ209ECP 45 85 19 1.1 1.1 63000 66400 7100 8500 0.42995 NJ209ETN1/C3 45 85 19 1.1 1.1 63000 66400 7100 8500 NU209 32209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.43400 NUP2209E 45 85 23 1.1 1.1 76000 84500 6600 7900 0.59384 NUP2209EN 45 85 23 1.1 1.1 76000 84500 6600 7900 0.58764 N309 2309K 45 100 25 1.5 1.5 72900 69900 5900 7000 0.82390 NF309 12309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.86840 NF309M/P6 E12309H 45 100 25 1.5 1.5 72900 69900 5900 7000 0.70829 NJ309 42309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.87490 NJ309E 45 100 25 1.5 1.5 99200 101000 5000 6000 0.97560 NU309 32309K 45 100 25 1.5 1.5 72900 69900 5900 7000 0.85180 NU309E 45 100 25 1.5 1.5 99200 101000 5000 6000 0.97990 NUP309 92309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.89440 NUP309N 192309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.91000 NUP309NR 45 100 25 1.5 1.5 72900 69900 5900 7000 0.91477 NUP309EN 45 100 25 1.5 1.5 99200 101000 5000 6000 0.98110 NUP309ENV/C3 45 100 25 1.5 1.5 110500 116100 4500 5300 0.97417 NUP309ENTN1 192309E 45 100 25 1.5 1.5 99200 101000 5000 6000 0.90400 NJ2309E 45 100 36 1.5 1.5 138800 155700 5000 6000 1.38761 NU2309E 45 100 36 1.5 1.5 138800 155700 5000 6000 1.35761 50 N210 2210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.47520 NF210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.49820 NF210C3 C3G12210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.49820 NF210E 50 90 20 1.1 1.1 65900 71800 6200 7300 0.53120 NJ210 42210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.48640 NJ210E 50 90 20 1.1 1.1 65900 71800 6600 7900 0.53020 NJ210ETN/C3 C3G42210EA 50 90 20 1.1 1.1 65900 71800 6200 7300 0.48320 NU210 32210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.47340 NU210/P6 E32210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.47340 NU210ETN/C3 50 90 20 1.1 1.1 65900 71800 6200 7900 0.46820 NUP210EN 50 90 20 1.1 1.1 65900 71800 6200 7900 0.52420 NUP210E 50 90 20 1.1 1.1 65900 71800 6200 7900 0.52620 NU2210ETN/C3 C3G32510EA 50 90 23 1.1 1.1 79500 91500 6200 7300 0.54970 NJ2210ETN1 50 90 23 1.1 1.1 79500 91500 1700 3300 0.56470 NJ2210E.TVP3.C3 50 90 23 1.1 1.1 77600 88600 1700 3300 0.56800 NJ2210E.TVP3 50 90 23 1.1 1.1 77600 88600 1700 3300 0.56800 NUP2210E 50 90 23 1.1 1.1 79500 91500 6200 7300 0.63660 N310 2310 50 110 27 2 2 88900 88800 5400 6300 1.09410 NF310 12310 50 110 27 2 2 88900 88800 5400 6300 1.10120 NJ310 42310 50 110 27 2 2 88900 88800 5400 6300 1.14800 NJ310E 50 110 27 2 2 112100 116000 5000 6000 1.27325 NJ310N C0G262310K 50 110 27 2 2 88900 88800 5400 6300 1.15300 NU310 32310 50 110 27 2 2 88900 88800 5400 6300 1.12560 NUP310 92310 50 110 27 2 2 88900 88800 5400 6300 1.20000 NUP310NV 50 110 27 2 2 128200 144700 5400 6300 1.20800 NUP310ENV/C3 50 110 27 2 2 128200 144700 5000 6000 1.20800 NCL310 102310 50 110 27 2 2 111300 122300 5400 6300 1.17000 N410 2410 50 130 31 2.1 2.1 132300 127600 5400 6300 2.26000 NJ410 42410K 50 130 31 2.1 2.1 132300 127600 5400 6300 2.26000 55 N211 2211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.62130 NF211 12211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.65370 NF211E 12211E 55 100 21 1.5 1.1 86100 98700 5400 6500 0.76600 NJ211 42211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.64510 NJ211/C3 55 100 21 1.5 1.1 50200 32000 6000 7100 0.64510 NJ211E 55 100 21 1.5 1.1 86100 98700 5400 6500 0.66160 NJ211ECP 55 100 21 1.5 1.1 86100 98700 5400 6500 0.66160 NU211 32211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.63010 NU211E 55 100 21 1.5 1.1 86100 98700 5400 6500 0.71850 NUP211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.64470 NUP211E 55 100 21 1.5 1.1 86100 98700 5400 6500 0.76060 NJ2211E 55 100 25 1.5 1.1 101200 121500 1500 3000 0.89360 NJ2211E/C3 3G42511E 55 100 25 2.0 1.1 101200 121500 5400 6500 0.89360 NUP2211EN/C3 55 100 25 1.5 1.1 101200 121500 5400 6500 0.89240 NF311E 12311E 55 120 29 2 2 138100 144300 4500 5300 1.60325 NF311E/C3 55 120 29 2 2 140500 147600 4500 5300 1.60145 NJ311E 42311E 55 120 29 2 2 138100 144300 4500 5300 1.63700 NUP311EN 55 120 29 2 2 140500 147600 4500 5300 1.66760 NUP311ENV/C3 55 120 29 2 2 153800 165700 4500 5300 1.59230 60 N212 2212 60 110 22 1.5 1.5 71800 79800 5400 6500 0.82160 NJ212 42212 60 110 22 1.5 1.5 71800 79800 5400 6500 0.83610 NJ212E 60 110 22 1.5 1.5 96200 105600 5000 6000 0.90750 NU212 32212 60 110 22 1.5 1.5 71800 79800 5400 6500 0.82220 NU212ETN1/C3 60 110 22 1.5 1.5 96200 105600 5000 6000 0.79458 NUP212E 60 110 22 1.5 1.5 96200 105600 5000 6000 0.92947 NF312 12312 60 130 31 2.1 2.1 124800 127800 4500 5400 1.86900 NF312E 60 130 31 2.1 2.1 153100 162100 4100 4900 2.02670 NF312E/C3 60 130 31 2.1 2.1 153500 164600 4100 4900 2.02670 NU312E 60 130 31 2.1 2.1 135900 96000 4100 4900 1.99332 NJ312E 42312E 60 130 31 2.1 2.1 153100 162100 4100 4900 2.03500 NUP312ENV/C3 60 130 31 2.1 2.1 185400 195200 4100 4900 1.89200 N2312E 60 130 46 2.1 2.1 225500 266700 4200 5000 2.99210 NJ2312E 60 130 46 2.1 2.1 225500 266700 4200 5000 2.98220 65 N213 2213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.19000 NF213 12213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.20500 NJ213 42213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.22000 NJ213E 65 120 23 1.5 1.5 109900 122300 4500 5400 1.14046 NU213 32213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.20400 NUP213E 65 120 23 1.5 1.5 109900 122300 5000 6000 1.16646 NUP213EN/C4 C4G192213E 65 120 23 1.5 1.5 109900 122300 4500 5400 1.16646 NU313E 65 140 33 2.1 2.1 182800 194800 4000 4700 2.37380 NJ313E 65 140 33 2.1 2.1 182800 195300 4000 4700 2.23005 NJ313E/C2 65 140 33 2 2 182800 194800 4000 4700 2.42280 NUP313ENV 65 140 33 2.1 2.1 212900 244900 4000 4700 2.20000 70 N214 2214 70 125 24 1.5 1.5 82100 93500 4800 5700 1.13770 NF214 12214 70 125 24 1.5 1.5 82100 93500 4800 5700 1.17340 NF214E/C3 70 125 24 1.5 1.5 123600 144500 4800 5700 1.27412 NF214E/YB2 70 125 24 4.3 1.5 121000 140700 4500 5400 1.27412 NJ214 42214 70 125 24 1.5 1.5 82100 93500 4800 5700 1.20300 NJ214E 70 125 24 1.5 1.5 121000 140700 4500 5400 1.27262 NU214 32214 70 125 24 1.5 1.5 82100 93500 4800 5700 0.84500 NUP214E 92214E 70 125 24 1.5 1.5 121000 140700 4500 5400 1.30600 NF314E 70 150 35 2.1 2.1 207100 226000 3700 4400 2.98900 NU314E 70 150 35 2.1 2.1 207100 226000 3700 4400 2.94617 NJ314E 70 150 35 2.1 2.1 207100 226000 3700 4400 3.00217 NJ314E/C9 70 150 35 2.1 2.1 207100 226000 3700 4400 3.00217 NUP314ENV/C4 70 150 35 2.1 2.1 236300 253300 3700 4400 3.02202 NJ2314VH 70 150 51 2.1 2.1 335000 455000 3700 4400 4.34670 75 N215 2215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.20430 NF215 12215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.24030 NJ215 42215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.24890 NU215 32215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.21780 NU215E 75 130 25 1.5 1.5 132200 160500 4200 5000 1.32420 80 N216 2216 80 140 26 2 2 118600 141600 4200 5000 1.72000 NJ216 42216 80 140 26 2 2 108500 125900 4200 5000 1.79000 NU216 32216 80 140 26 2 2 118600 141600 4200 5000 1.75000 85 NJ217 42217 85 150 28 2 2 122800 144000 4000 4700 2.17000
Company Profile
Cylindrical Roller Berings
In bearings of Cylindrical Roller Berings the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.
Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools. Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings.
There are different types designated as NU, NJ, NUP, N, NF (for single-row cylindrical roller bearings), NNU, and NN (for double-row cylindrical roller bearings depending on the design or absence of side ribs). The outer and inner rings of all types are separable .
NU406 32406 N406 NF406 NJ406 NUP406
30 90 23mm 0.73kg
Main items
Bearing NO.
Shaft diameter (mm)
Company Profile

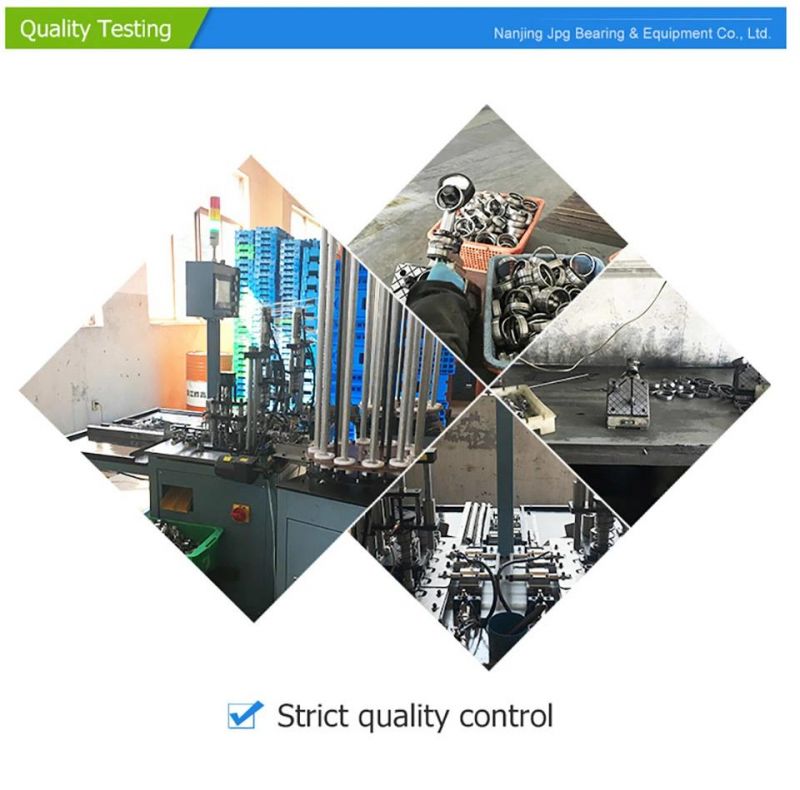

Quality Testing FAQ
Packaging:
1. Neutral Package: Plastic Bag + Carton + Pallet;
2. Commercial Package: Plastic Bag + Box + Carton + Pallet;
3. As the clients' requirement.
Delivery:
1. Less than 1000 pcs , we will send by express. ( Door to Door, Convenient ),
or by air transport. ( Fastest and safest, but expensive )
2. More than 1000pcs , we will send by sea. ( Cheapest, safe )
1. Can I get some samples?
A: Yes, sample is available for quality check and market test.
2. Can we do our logo or brand on the package?
A: Yes, we can do OEM.
3. What's the delivery time?
A: It usually takes about 10-25 working days for production based on specifications for your order and quantity.
4. What's your payment terms?
A: We usually accept T/T or L/C at sight as the main payment
terms, an d other payment can also be negotiated.
5. What's your warranty terms?A: We offer different warranty time for different components,
please contact us for details
Payment:
2. Between 1000-10000pcs, TT, Western Union, MoneyGram.
3. More than 10000pcs , TT, L/C ,Western Union, MoneyGram.
Dealing Process:
Send us inqry---------Quotation-----------Confirmation for all information----------Proforma Invoice-------------Payment-----------Shipping goods and documents.
