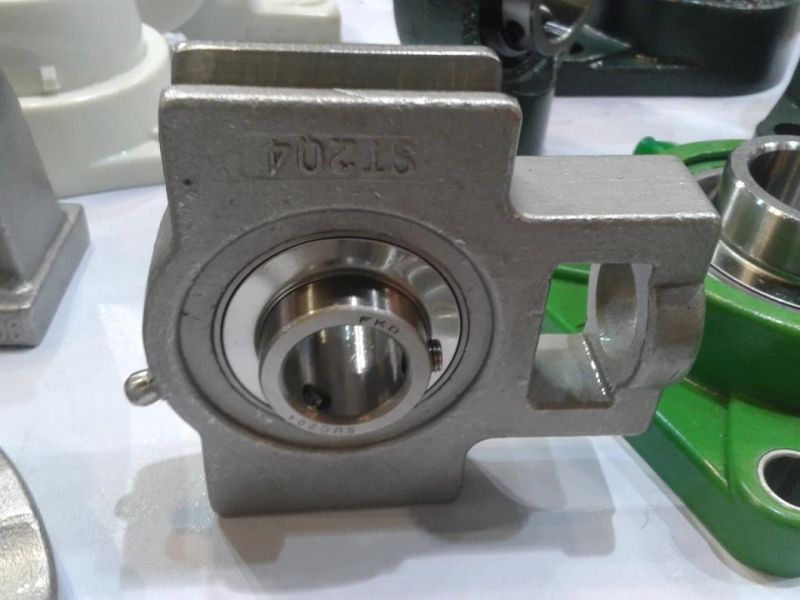

Stainless Steel Bearing Units Ssuct204 Ssuct205 Ssuct206 Ssuct207 Ssuct208
Hebei Hailan Bearing Manufacture Co., Ltd.- Aligning：Aligning Bearing
- Separated：Separated
- Feature：Vacuum, Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed
- Rows Number：Single
- Raceway：Deep Groove Raceway
- Material：Stainless Steel
Base Info
- Model NO.：SSUCT204
- Bearing Block Model：T
- Quality：P0 or ABEC-1
- Company Area：100, 000sqm(Plant 65000+ Sqm)
- Housing Material：Cast Iron(Ht200)
- Bearing Seal Type：Double Seal, F Seal, Triple Seal
- Transport Package：Plastic Bag + Single Color Box+ Carton + Pallet
- Specification：mm and inch size
- Trademark：FKD, HHB, FE
- Origin：Xingtai, Hebei
- HS Code：84832000
- Production Capacity：600, 000PCS Per Mouth
Description
Basic Info.
Model NO. SSUCT204 Bearing Block Model T Quality P0 or ABEC-1 Company Area 100, 000sqm(Plant 65000+ Sqm) Housing Material Cast Iron(Ht200) Bearing Seal Type Double Seal, F Seal, Triple Seal Transport Package Plastic Bag + Single Color Box+ Carton + Pallet Specification mm and inch size Trademark FKD, HHB, FE Origin Xingtai, Hebei HS Code 84832000 Production Capacity 600, 000PCS Per MouthProduct Description

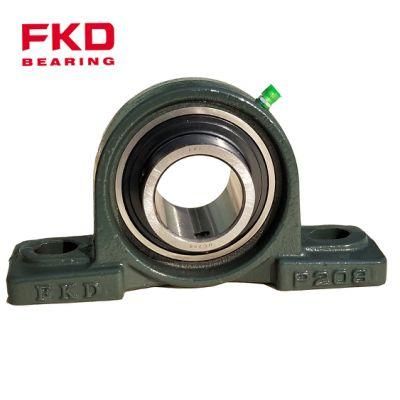

Product name: Pillow BlocksProduct item: SSUCT 200
Product brand: FKD, FE, HHB
Product unit No. SUCT/201--213
Product packing: Plastic bag + individual color box + carton + pallet
Product material: Stainless Steel for bearings, Stainless Steel for housings

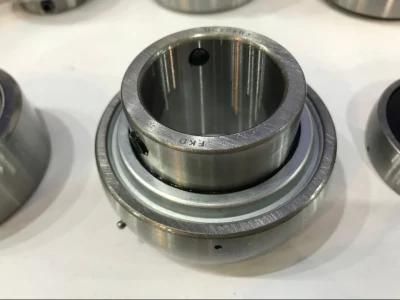

Pillow Block Bearings are composed of a single row deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support.
Pillow Blocks are for mechanical equipment, like agricaltural, metallurgical, textile and printing machinery.

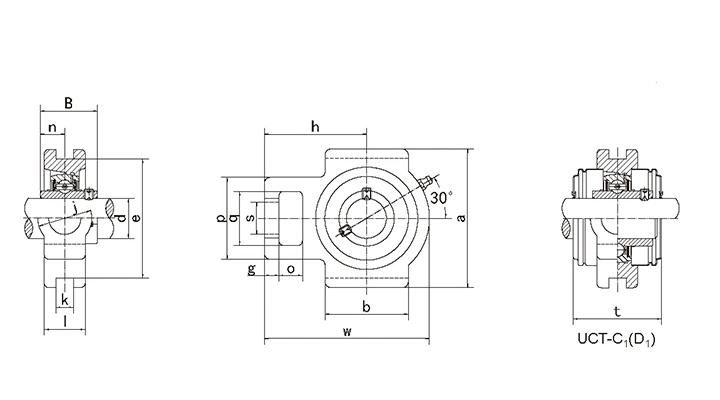

| Unit NO. | Dimensions(mm/in.) | Bearing NO. | Housing NO. | Weight(kg) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | o | g | p | q | s | b | k | e | a | w | j | l | h | t | B | n | ||||
| SS-UCT201 | 12 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 44.5 | 31 | 12.7 | SS-UC201 | T201 | 0.77 |
| SS-UCT 201-8 | 1/2 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-11/16 | 1-1/4 | 53/64 | 2-13/32 | 1-3/4 | 1.2205 | 0.5 | SS-UC201-8 | T201 | 0.76 |
| SS-UCT202 | 15 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 44.5 | 31 | 12.7 | SS-UC202 | T202 | 0.76 |
| SS-UCT 202-9 | 9/16 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-11/16 | 1-1/4 | 53/64 | 2-13/32 | 1-3/4 | 1.2205 | 0.5 | SS-UC202-9 | T202 | 0.76 |
| SS-UCT 202-10 | 5/8 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-11/16 | 1-1/4 | 53/64 | 2-13/32 | 1-3/4 | 1.2205 | 0.5 | SS-UC202-10 | T202 | 0.76 |
| SS-UCT203 | 17 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 44.5 | 31 | 12.7 | SS-UC203 | T203 | 0.75 |
| SS-UCT 203-11 | 11/16 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-11/16 | 1-1/4 | 53/64 | 2-13/32 | 1-3/4 | 1.2205 | 0.5 | SS-UC203-11 | T203 | 0.74 |
| SS-UCT204 | 20 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 44.5 | 31 | 12.7 | SS-UC204 | T204 | 0.73 |
| SS-UCT 204-12 | 3/4 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-11/16 | 1-1/4 | 53/64 | 2-13/32 | 1-3/4 | 1.2205 | 0.5 | SS-UC204-12 | T204 | 0.73 |
| SS-UCT205 | 25 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 97 | 32 | 24 | 62 | 48 | 34.1 | 14.3 | SS-UC205 | T205 | 0.8 |
| SS-UCT 205-13 | 13/16 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-13/16 | 1-1/4 | 15/16 | 2-7/16 | 1-7/8 | 1.3425 | 0.563 | SS-UC205-13 | T205 | 0.84 |
| SS-UCT 205-14 | 7/8 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-13/16 | 1-1/4 | 15/16 | 2-7/16 | 1-7/8 | 1.3425 | 0.563 | SS-UC205-14 | T205 | 0.83 |
| SS-UCT 205-15 | 15/16 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-13/16 | 1-1/4 | 15/16 | 2-7/16 | 1-7/8 | 1.3425 | 0.563 | SS-UC205-15 | T205 | 0.81 |
| SS-UCT 205-16 | 1 | 5/8 | 25/64 | 2-1/64 | 1-1/4 | 3/4 | 2-1/64 | 15/32 | 2-63/64 | 3-1/2 | 3-13/16 | 1-1/4 | 15/16 | 2-7/16 | 1-7/8 | 1.3425 | 0.563 | SS-UC205-16 | T205 | 0.8 |
| SS-UCT206 | 30 | 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 | 102 | 113 | 37 | 28 | 70 | 53 | 38.1 | 15.9 | SS-UC206 | T206 | 1.22 |
| SS-UCT 206-17 | 1-1/16 | 5/8 | 25/64 | 2-7/32 | 1-29/64 | 55/64 | 2-1/4 | 15/32 | 3-1/2 | 4-1/64 | 4-29/64 | 1-29/64 | 1-3/32 | 2-3/4 | 2-3/32 | 1.5 | 0.626 | SS-UC206-17 | T206 | 1.23 |
| SS-UCT 206-18 | 1-1/8 | 5/8 | 25/64 | 2-7/32 | 1-29/64 | 55/64 | 2-1/4 | 15/32 | 3-1/2 | 4-1/64 | 4-29/64 | 1-29/64 | 1-3/32 | 2-3/4 | 2-3/32 | 1.5 | 0.626 | SS-UC206-18 | T206 | 1.24 |
| SS-UCT 206-19 | 1-3/16 | 5/8 | 25/64 | 2-7/32 | 1-29/64 | 55/64 | 2-1/4 | 15/32 | 3-1/2 | 4-1/64 | 4-29/64 | 1-29/64 | 1-3/32 | 2-3/4 | 2-3/32 | 1.5 | 0.626 | SS-UC206-19 | T206 | 1.22 |
| SS-UCT 206-20 | 1-1/4 | 5/8 | 25/64 | 2-7/32 | 1-29/64 | 55/64 | 2-1/4 | 15/32 | 3-1/2 | 4-1/64 | 4-29/64 | 1-29/64 | 1-3/32 | 2-3/4 | 2-3/32 | 1.5 | 0.626 | SS-UC206-20 | T206 | 1.21 |
| SS-UCT207 | 35 | 16 | 13 | 64 | 37 | 22 | 64 | 12 | 89 | 102 | 129 | 37 | 30 | 78 | 59.5 | 42.9 | 17.5 | SS-UC207 | T207 | 1.57 |
| Unit NO. | Dimensions(mm/in.) | Bearing NO. | Housing NO. | Weight(kg) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | o | g | p | q | s | b | k | e | a | w | j | l | h | t | B | n | ||||
| SS-UCT 207-20 | 1-1/4 | 5/8 | 33/64 | 2-33/64 | 1-29/64 | 55/64 | 2-33/64 | 15/32 | 3-1/2 | 4-1/64 | 5-5/64 | 1-29/64 | 1-3/16 | 3-5/64 | 2-11/32 | 1.689 | 0.689 | SS-UC207-20 | T207 | 1.63 |
| SS-UCT 207-21 | 1-5/16 | 5/8 | 33/64 | 2-33/64 | 1-29/64 | 55/64 | 2-33/64 | 15/32 | 3-1/2 | 4-1/64 | 5-5/64 | 1-29/64 | 1-3/16 | 3-5/64 | 2-11/32 | 1.689 | 0.689 | SS-UC207-21 | T207 | 1.6 |
| SS-UCT 207-22 | 1-3/8 | 5/8 | 33/64 | 2-33/64 | 1-29/64 | 55/64 | 2-33/64 | 15/32 | 3-1/2 | 4-1/64 | 5-5/64 | 1-29/64 | 1-3/16 | 3-5/64 | 2-11/32 | 1.689 | 0.689 | SS-UC207-22 | T207 | 1.57 |
| SS-UCT 207-23 | 1-7/16 | 5/8 | 33/64 | 2-33/64 | 1-29/64 | 55/64 | 2-33/64 | 15/32 | 3-1/2 | 4-1/64 | 5-5/64 | 1-29/64 | 1-3/16 | 3-5/64 | 2-11/32 | 1.689 | 0.689 | SS-UC207-23 | T207 | 1.54 |
| SS-UCT208 | 40 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 114 | 144 | 49 | 33 | 89 | 69 | 49.2 | 19 | SS-UC208 | T208 | 2.31 |
| SS-UCT 208-24 | 1-1/2 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-31/64 | 5-43/64 | 1-15/16 | 1-19/64 | 3-1/2 | 2-23/32 | 1.937 | 0.748 | SS-UC208-24 | T208 | 2.35 |
| SS-UCT 208-25 | 1-9/16 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-31/64 | 5-43/64 | 1-15/16 | 1-19/64 | 3-1/2 | 2-23/32 | 1.937 | 0.748 | SS-UC208-25 | T208 | 2.32 |
| SS-UCT209 | 45 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 117 | 144 | 49 | 35 | 87 | 69 | 49.2 | 19 | SS-UC209 | T209 | 2.34 |
| SS-UCT 209-26 | 1-5/8 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-39/64 | 5-43/64 | 1-15/16 | 1-3/8 | 3-27/64 | 2-23/32 | 1.937 | 0.748 | SS-UC209-26 | T209 | 2.44 |
| SS-UCT 209-27 | 1-11/16 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-39/64 | 5-43/64 | 1-15/16 | 1-3/8 | 3-27/64 | 2-23/32 | 1.937 | 0.748 | SS-UC209-27 | T209 | 2.4 |
| SS-UCT 209-28 | 1-3/4 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-39/64 | 5-43/64 | 1-15/16 | 1-3/8 | 3-27/64 | 2-23/32 | 1.937 | 0.748 | SS-UC209-28 | T209 | 2.36 |
| SS-UCT210 | 50 | 19 | 16 | 83 | 49 | 29 | 86 | 16 | 102 | 117 | 149 | 49 | 37 | 90 | 74.5 | 51.6 | 19 | SS-UC210 | T210 | 2.47 |
| SS-UCT 210-29 | 1-13/16 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-39/64 | 5-55/64 | 1-15/16 | 1-29/64 | 3-35/64 | 2-15/16 | 2.0315 | 0.748 | SS-UC210-29 | T210 | 2.59 |
| SS-UCT 210-30 | 1-7/8 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-39/64 | 5-55/64 | 1-15/16 | 1-29/64 | 3-35/64 | 2-15/16 | 2.0315 | 0.748 | SS-UC210-30 | T210 | 2.54 |
| SS-UCT 210-31 | 1-15/16 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-39/64 | 5-55/64 | 1-15/16 | 1-29/64 | 3-35/64 | 2-15/16 | 2.0315 | 0.748 | SS-UC210-31 | T210 | 2.49 |
| SS-UCT 210-32 | 2 | 3/4 | 5/8 | 3-17/64 | 1-15/16 | 1-9/64 | 3-17/64 | 5/8 | 4-1/64 | 4-39/64 | 5-55/64 | 1-15/16 | 1-29/64 | 3-35/64 | 2-15/16 | 2.0315 | 0.748 | SS-UC210-32 | T210 | 2.45 |
| SS-UCT211 | 55 | 25 | 19 | 102 | 64 | 35 | 95 | 22 | 130 | 146 | 171 | 64 | 38 | 106 | 76 | 55.6 | 22.2 | SS-UC211 | T211 | 3.74 |
| SS-UCT 211-32 | 2 | 63/64 | 3/4 | 4-1/64 | 2-1/32 | 1-3/8 | 3-3/4 | 55/64 | 5-1/8 | 5-3/4 | 6-47/64 | 2-33/64 | 1-1/2 | 4-11/64 | 3 | 2.189 | 0.874 | SS-UC211-32 | T211 | 3.89 |
| SS-UCT 211-33 | 2-1/16 | 63/64 | 3/4 | 4-1/64 | 2-1/32 | 1-3/8 | 3-3/4 | 55/64 | 5-1/8 | 5-3/4 | 6-47/64 | 2-33/64 | 1-1/2 | 4-11/64 | 3 | 2.189 | 0.874 | SS-UC211-33 | T211 | 3.83 |
| SS-UCT 211-34 | 2-1/8 | 63/64 | 3/4 | 4-1/64 | 2-1/32 | 1-3/8 | 3-3/4 | 55/64 | 5-1/8 | 5-3/4 | 6-47/64 | 2-33/64 | 1-1/2 | 4-11/64 | 3 | 2.189 | 0.874 | SS-UC211-34 | T211 | 3.79 |
