Needle Roller Bearing Na4905 Na4906 Na4904 Na4903 Na4902 Na4901 Na4900 Sealed Needle Roller Bearing with Inner Ring

Zaozhuang Yiding Bearing Co., Ltd.

Cage：With Cage
Rows Number：Single
Load Direction：Radial Bearing
Style：With Outer Ring
Material：Bearing Steel
Type：Open

Base Info

Model NO.：Na4905
Transport Package：Box, Carton Box, Woodencase
Specification：HK series as your needs
Trademark：Edinh
Origin：China

Description

Designations :Needle Roller Bearing Na4905 Na4906 Na4904 Na4903 Na4902 Na4901 Na4900 Sealed Needle Roller Bearing With Inner Ring Needle Roller Bearing with Flanges without Inner Ring Ring Material :GCR15/ Machined SteelRoller Material :GCR15/ Chrome SteelCage Material :SteelNumber of Row :Single Row Precision Rating :P0 P6 P5 P4Application Industries :Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc.Price List :NegotiateService :OEM or Customer Logo Acceptable and Sample OfferPackage :Industrial Packing or As Customer RequiredMore Service :plz Contact Us . The contact address is at the bottom. Needle Roller Bearing Na4905 Na4906 Na4904 Na4903 Na4902 Na4901 Na4900 Sealed Needle Roller Bearing with Inner Ring

Size:

Suitable for high radial load capacities .

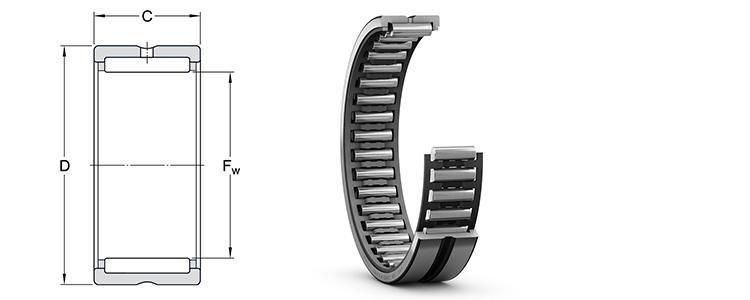

the following is basic design of single row needle roller bearing with flanges :

Needle Roller Bearing Na4905 Na4906 Na4904 Na4903 Na4902 Na4901 Na4900 Sealed Needle Roller Bearing with Inner Ring

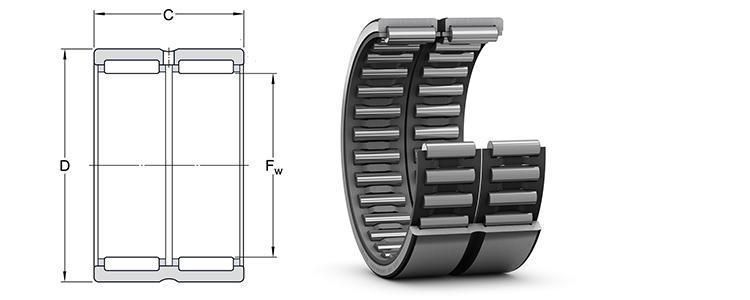

the following is basic design of double row needle roller bearing with flanges :

Needle Roller Bearing Na4905 Na4906 Na4904 Na4903 Na4902 Na4901 Na4900 Sealed Needle Roller Bearing with Inner Ring

Princi	pal dimensions		Basic load	ratings	Speed	Mass	Designations
Fw	D	C	dynamic	static	reference	reference
mm			kn		r/min	kg
5	10	10	2.29	2	36000	0.0031	NK 5/10 TN
5	10	12	2.92	2.7	36000	0.0037	NK 5/12 TN
6	12	10	2.55	2.36	34000	0.0047	NK 6/10 TN
6	12	12	3.3	3.2	34000	0.0057	NK 6/12 TN
7	14	10	2.81	2.75	32000	0.0069	NK 7/10 TN
7	14	12	3.58	3.75	32000	0.0082	NK7/12 TN
8	15	12	3.8	4.25	32000	0.0087	NK 8/12 TN
8	15	16	5.01	5.85	32000	0.012	NK 8/16 TN
9	16	12	4.4	5.2	30000	0.01	NK 9/12 TN
9	16	16	5.72	7.2	30000	0.013	NK 9/16 TN
10	17	12	4.57	5.7	28000	0.01	NK 10/12 TN
10	17	16	5.94	8	28000	0.013	NK 10/16 TN
12	19	12	6.71	8.15	26000	0.012	NK 12/12
12	19	16	9.13	12	26000	0.016	NK 12/16
14	22	13	8.8	10.4	24000	0.017	RNA 4900
14	22	16	10.2	12.5	24000	0.021	NK 14/16
14	22	20	12.8	16.6	24000	0.026	NK 14/20
15	23	16	11	14	24000	0.022	NK 15/16
15	23	20	13.8	18.3	24000	0.027	NK 15/20
16	24	13	9.9	12.2	22000	0.017	RNA 4901
16	24	16	11.7	15.3	22000	0.022	NK 16/16
16	24	20	14.5	20	22000	0.028	NK 16/20
16	24	22	16.1	23.2	22000	0.031	RNA 6901
