One Way Needle Roller Bearing Rna 4900 Needle Roller Bearing Rna4900 with Flanges Without Inner Ring Size 14X22X13 mm

Zaozhuang Yiding Bearing Co., Ltd.

Cage：With Cage
Rows Number：Single
Load Direction：Radial Bearing
Style：With Outer Ring
Material：Bearing Steel
Type：Open

Base Info

Model NO.：RNA4900
Transport Package：Box, Carton Box, Woodencase
Specification：HK series as your needs
Trademark：Edinh
Origin：China

Description

Designations :RNA 4900 Needle Roller Bearing with Flanges without Inner Ring Inside :14 mmOutside :22 mmWidth :13 mmProduct Weight :0.017 kg Ring Material :GCR15/ Machined SteelRoller Material :GCR15/ Chrome SteelCage Material :SteelNumber of Row :Single Row Precision Rating :P0 P6 P5 P4Application Industries :Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc.Price List :NegotiateService :OEM or Customer Logo Acceptable and Sample OfferPackage :Industrial Packing or As Customer RequiredMore Service :plz Contact Us . The contact address is at the bottom.
One Way Needle Roller Bearing Rna 4900 Needle Roller Bearing Rna4900 with Flanges Without Inner Ring Size 14X22X13 mm

One Way Needle Roller Bearing Rna 4900 Needle Roller Bearing Rna4900 with Flanges Without Inner Ring Size 14X22X13 mm

Size:

Suitable for high radial load capacities .

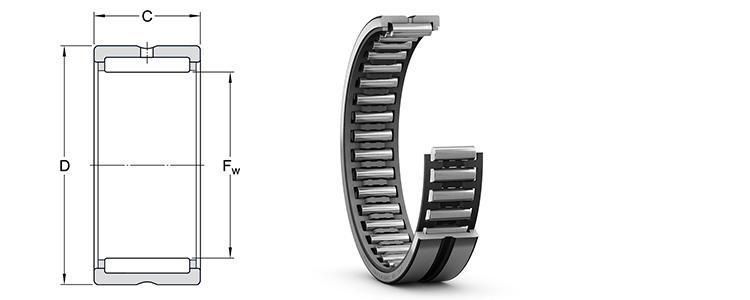

the following is basic design of single row needle roller bearing with flanges :

One Way Needle Roller Bearing Rna 4900 Needle Roller Bearing Rna4900 with Flanges Without Inner Ring Size 14X22X13 mm

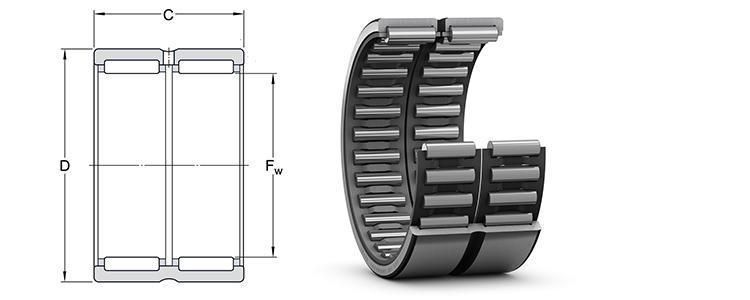

the following is basic design of double row needle roller bearing with flanges :

One Way Needle Roller Bearing Rna 4900 Needle Roller Bearing Rna4900 with Flanges Without Inner Ring Size 14X22X13 mm

Princi	pal dimensions		Basic load	ratings	Speed	Mass	Designations
Fw	D	C	dynamic	static	reference	reference
mm			kn		r/min	kg
5	10	10	2.29	2	36000	0.0031	NK 5/10 TN
5	10	12	2.92	2.7	36000	0.0037	NK 5/12 TN
6	12	10	2.55	2.36	34000	0.0047	NK 6/10 TN
6	12	12	3.3	3.2	34000	0.0057	NK 6/12 TN
7	14	10	2.81	2.75	32000	0.0069	NK 7/10 TN
7	14	12	3.58	3.75	32000	0.0082	NK7/12 TN
8	15	12	3.8	4.25	32000	0.0087	NK 8/12 TN
8	15	16	5.01	5.85	32000	0.012	NK 8/16 TN
9	16	12	4.4	5.2	30000	0.01	NK 9/12 TN
9	16	16	5.72	7.2	30000	0.013	NK 9/16 TN
10	17	12	4.57	5.7	28000	0.01	NK 10/12 TN
10	17	16	5.94	8	28000	0.013	NK 10/16 TN
12	19	12	6.71	8.15	26000	0.012	NK 12/12
12	19	16	9.13	12	26000	0.016	NK 12/16
14	22	13	8.8	10.4	24000	0.017	RNA 4900
14	22	16	10.2	12.5	24000	0.021	NK 14/16
14	22	20	12.8	16.6	24000	0.026	NK 14/20
15	23	16	11	14	24000	0.022	NK 15/16
15	23	20	13.8	18.3	24000	0.027	NK 15/20
16	24	13	9.9	12.2	22000	0.017	RNA 4901
16	24	16	11.7	15.3	22000	0.022	NK 16/16
16	24	20	14.5	20	22000	0.028	NK 16/20
16	24	22	16.1	23.2	22000	0.031	RNA 6901
